1640S / 1660S Lathe

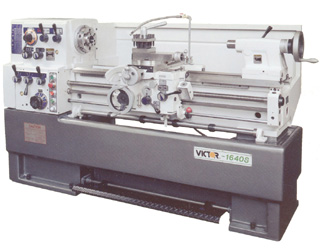

Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

High-performance precision high-speed heavy-duty lathe with rigid one-piece Meehanite casting bed provides superior accuracy, durability, and reliability. Exceptional high-quality construction results in stability and consistency.

FEATURES:
  • One-piece heavy-duty cast iron base with a special exit for chips removal
  • Oversized rigid compound rest for heavy cutting
  • Hardened and precision ground gears and bedways
  • Hardened and ground spindle nose
  • Full Meehanite casting bed
  • Headstock transmission gears driven by spline shafts
  • The spindle is supported at 3 points by precision bearings
  • Safety overload device
  • Inch/metric threading without changing gears
  • 7.5 HP main motor delivers full power at all 12 speeds

STANDARD ACCESSORIES:

  • Removable gap
  • Tailstock
  • Coolant system
  • Chuck cover with limit switch
  • Full length foot brake
  • D.P. / module thread change gears
  • Threading dial indicator
  • Center sleeve
  • Dead center M.T. #4
  • Leveling screws and pads
  • Manual and parts list

OPTIONAL SPECIAL PACKAGE INCLUDES:

  1. 8" 3-jaw chuck
  2. Steady rest with rollers
  3. Follow rest
  4. 4-way tool post
  5. Face plate
  6. Full length splash guard
  7. Halogen work light
  8. Chuck cover with limit switch
MACHINE
Model(s): 1640S 1660S
Type: Precision High-Speed Heavy-Duty Lathe
CAPACITY
Swing over bed: 16"
Swing over cross slide: 9.44"
Swing over gap: 23-7/16"
Bed width: 11-13/16"
Distance between centers: 40" 60"
HEADSTOCK
Spindle bore diameter: 2.03"
Spindle bore taper: M.T. #6
Taper of center in sleeve: M.T. #4
Spindle nose: D1-6
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 30 ~ 2,000 rpm
Speed selections: 30, 55, 70, 95, 160, 200, 325, 540, 700, 1000, 1600, 2000
THREADS & FEEDS
Range of longitudinal feeds: 0.0012" ~ 0.0352"/rev.
Range of cross feeds: 0.0006" ~ 0.0176"/rev.
Inch threads: 2 ~ 56 TPI x 40 kinds
Metric threads: 0.4 ~ 14 mm x 52 kinds
CARRIAGE
Cross slide travel: 9"
Compound slide travel: 4-3/4"
TAILSTOCK
Tailstock taper center: M.T. #4
Tailstock quill travel: 4-3/4"
POWER
Main motor: 7.5 HP 3 Phase
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 89"x38"x65" 110"x38"x65"
Gross weight: 4,290 lb. 4,950 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Engine Lathes





Accessories

STANDARD ACCESSORIES:

  • Removable gap
  • Tailstock
  • Coolant system
  • Chuck cover with limit switch
  • Full length foot brake
  • D.P. / module thread change gears
  • Threading dial indicator
  • Center sleeve
  • Dead center M.T. #4
  • Leveling screws and pads
  • Manual and parts list

OPTIONAL SPECIAL PACKAGE INCLUDES:

  1. 8" 3-jaw chuck
  2. Steady rest with rollers
  3. Follow rest
  4. 4-way tool post
  5. Face plate
  6. Full length splash guard
  7. Halogen work light
  8. Chuck cover with limit switch

Specifications

MACHINE
Model(s): 1640S 1660S
Type: Precision High-Speed Heavy-Duty Lathe
CAPACITY
Swing over bed: 16"
Swing over cross slide: 9.44"
Swing over gap: 23-7/16"
Bed width: 11-13/16"
Distance between centers: 40" 60"
HEADSTOCK
Spindle bore diameter: 2.03"
Spindle bore taper: M.T. #6
Taper of center in sleeve: M.T. #4
Spindle nose: D1-6
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 30 ~ 2,000 rpm
Speed selections: 30, 55, 70, 95, 160, 200, 325, 540, 700, 1000, 1600, 2000
THREADS & FEEDS
Range of longitudinal feeds: 0.0012" ~ 0.0352"/rev.
Range of cross feeds: 0.0006" ~ 0.0176"/rev.
Inch threads: 2 ~ 56 TPI x 40 kinds
Metric threads: 0.4 ~ 14 mm x 52 kinds
CARRIAGE
Cross slide travel: 9"
Compound slide travel: 4-3/4"
TAILSTOCK
Tailstock taper center: M.T. #4
Tailstock quill travel: 4-3/4"
POWER
Main motor: 7.5 HP 3 Phase
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 89"x38"x65" 110"x38"x65"
Gross weight: 4,290 lb. 4,950 lb.

* Design and specifications are subject to change without notice.
