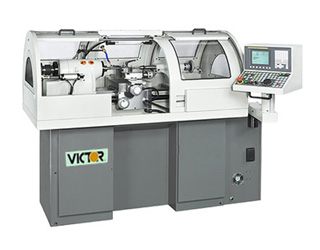

1118DCL Toolroom Lathe


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

A powerful multi-function super precision CNC toolroom lathe comes with a smooth 3 HP inverter spindle motor that runs virtually vibration free and extremely quite.


  • Fanuc Oi Mate T ultra-compact CNC integrated with LCD display plus Manual Guide
  • Spindle runout within 50 millionths
  • Main casting pieces are by Meehanite castings for superior dampening and rigidity
  • High precision ballscrew on X, Z-axis
  • X, Z-axis feed is driven by an AC servo motor
  • X, Z-axis ballscrews directly coupled to AC servo motor, minimizing backlash
  • Hardened and ground bedways
  • Hardened and ground spindle mounted on high precision preloaded angular contact ball bearings
  • Turcite-B slideway bearing surface between carriage and bed to provide wear resistance


Machine Saddle



  • The saddle slideways are coated with Turcite-B for maximum wear resistance.
  • The cross slideways have hardened and ground tool steel inserts for smooth accurate movement.


Setup options on 1118DCL Toolroom Lathe:

Bare cross slide with precision locator holes for custom applications.


Quick-change tool post on short gang tool plate.

Quick change tool post on compound tool slide and single tool holder in the rear.



Two short gang tool plates setup with opening in the center for long work piece applications.


One full length gang tool plate with T-slots to accommodate variety of tool holders

Multiple single gang tool plates each holding a single tool holder.



Gang tooling setup on 1118DCL Toolroom Lathe.




STANDARD ACCESSORIES:

  • Hand lever type 5C collet closer
  • Manual rigid tailstock with inch/metric graduations
  • Coolant system
  • Work light

OPTIONAL ACCESSORIES:



      Air operated 5C collet closer





MACHINE
Model: 1118DCL
Type: Digital Control Lathe
CNC controller: Fanuc 0i Mate T
SPINDLE CAPACITY
With jaw chucks: 6"
With expanding collets: 3"
With round 5C collets: 1-1/16"
With hexagon 5C collets: 7/8"
With square 5C collets: 3/4"
With step chucks: 1-1/16" to 6"
Spindle nose I.D. / O.D.: 5C / 4° taper
Hole through spindle: 1-1/4"
Variable spindle speeds: 50 ~ 4,000 rpm (3 HP) 50 ~ 6,000 rpm (5 HP optional)
CAPACITY
Maximum swing: 14.96"
Maximum turning diameter: 6"
Distance between centers: 18"
TRAVELS & RAPIDS
Quick-action compound slide travel: 0.1"
Maximum cross slide travel (X-axis): 8.66"
Maximum longitudinal travel (Z-axis): 13.39"
Rapid traverse (X / Z axis): 787 ipm
TAILSTOCK
Tailstock taper center: M.T. #2
Tailstock quill diameter: 1.36"
Tailstock quill travel: 3-3/4"
POWER
Inverter spindle motor: 3 HP (5 HP optional)
X / Z-axis servo motor: X : ß2 / Z : ß2
Coolant pump motor: 1/4 HP
Voltage: 220V / 3 Phase
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 87"x44"x85"
Gross weight: 2,860 lb.
