2040S / 2060S / 2080S / 20120S / 20160S Lathe

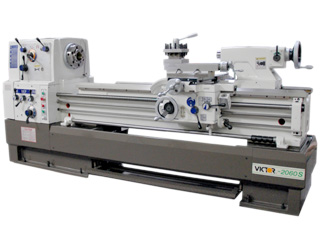

Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

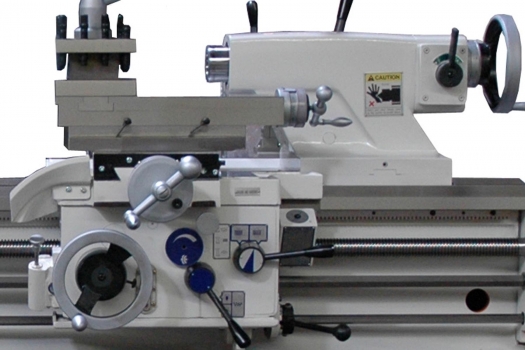

Extra large rigid compound rest and Meehanite casting bed provide excellent stability and consistency during machining. Large 3-1/8" spindle bore and 10 HP main motor are sufficient for high demanding jobs.

FEATURES:

  • Oversized rigid compound rest for heavy cutting
  • Hardened and precision ground gears and bedways
  • Hardened and ground spindle nose
  • Full Meehanite casting bed
  • Headstock transmission gears driven by spline shafts
  • The spindle is supported at 3 points by precision bearings
  • Safety overload device
  • Inch/metric threading without changing gears
  • 10 HP main motor delivers full power at all 12 speeds
  • Dual speed tailstock quill (ratio 1:1 and 1:5) provides easy drilling operation
  • 2-way longitudinal (z-axis) power rapid traverse on 20120S and 20160S


STANDARD ACCESSORIES:

  • Removable gap
  • Tailstock with duo speed quill
  • Coolant system
  • Chuck cover with limit switch
  • D.P. / module thread change gears
  • Threading dial indicator
  • Center sleeve
  • Dead center M.T. #5
  • 2-way longitudinal z-axis power rapid traverse (20120S and 20160S only)
  • Leveling screws and pads
  • Manual and parts list

OPTIONAL SPECIAL PACKAGE INCLUDES:

  1. 10" 3-jaw chuck
  2. 16" 4-jaw chuck
  3. Steady rest with rollers
  4. Follow rest
  5. 4-way tool post
  6. Halogen work light
  7. Full length splash guard for 2040S, 2060S and 2080S only
  8. On-carriage splash guard for 20120S and 20160S only
MACHINE
Model(s): 2040S 2060S 2080S 20120S 20160S
Type: Precision Heavy-Duty Lathe
CAPACITY
Swing over bed: 20"
Swing over cross slide: 13"
Swing over gap: 26-3/8"
Bed width: 15-3/4"
Distance between centers: 40" 60" 80" 120" 160"
HEADSTOCK
Spindle bore diameter: 3.13"
Spindle bore taper: M.T. #7
Taper of center in sleeve: M.T. #5
Spindle nose: D1-8
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 20 ~ 1,550 rpm
Speed selections: 20, 30, 45, 60, 100, 150, 210, 350, 490, 680, 1100, 1550
THREADS & FEEDS
Range of longitudinal feeds: 0.0014" ~ 0.0387"/rev.
Range of cross feeds: 0.0007" ~ 0.01935"/rev.
Inch threads: 2 ~ 112 TPI x 60 kinds
Metric threads: 0.2 ~ 14 mm x 60 kinds
CARRIAGE
Cross slide travel: 12-1/2"
Compound slide travel: 10"
TAILSTOCK
Tailstock taper center: M.T. #5
Tailstock quill travel: 6-5/16"
POWER
Main motor: 10 HP 3 Phase
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 89"x44"x65" 110"x44"x65" 140"x44"x65" 185"x44"x65" 230"x44"x65"
Gross weight: 4,660 lb. 5,320 lb. 5,870 lb. 7,230 lb. 8,330 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Engine Lathes





Accessories

STANDARD ACCESSORIES:

  • Removable gap
  • Tailstock with duo speed quill
  • Coolant system
  • Chuck cover with limit switch
  • D.P. / module thread change gears
  • Threading dial indicator
  • Center sleeve
  • Dead center M.T. #5
  • 2-way longitudinal z-axis power rapid traverse (20120S and 20160S only)
  • Leveling screws and pads
  • Manual and parts list

OPTIONAL SPECIAL PACKAGE INCLUDES:

  1. 10" 3-jaw chuck
  2. 16" 4-jaw chuck
  3. Steady rest with rollers
  4. Follow rest
  5. 4-way tool post
  6. Halogen work light
  7. Full length splash guard for 2040S, 2060S and 2080S only
  8. On-carriage splash guard for 20120S and 20160S only

Specifications

MACHINE
Model(s): 2040S 2060S 2080S 20120S 20160S
Type: Precision Heavy-Duty Lathe
CAPACITY
Swing over bed: 20"
Swing over cross slide: 13"
Swing over gap: 26-3/8"
Bed width: 15-3/4"
Distance between centers: 40" 60" 80" 120" 160"
HEADSTOCK
Spindle bore diameter: 3.13"
Spindle bore taper: M.T. #7
Taper of center in sleeve: M.T. #5
Spindle nose: D1-8
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 20 ~ 1,550 rpm
Speed selections: 20, 30, 45, 60, 100, 150, 210, 350, 490, 680, 1100, 1550
THREADS & FEEDS
Range of longitudinal feeds: 0.0014" ~ 0.0387"/rev.
Range of cross feeds: 0.0007" ~ 0.01935"/rev.
Inch threads: 2 ~ 112 TPI x 60 kinds
Metric threads: 0.2 ~ 14 mm x 60 kinds
CARRIAGE
Cross slide travel: 12-1/2"
Compound slide travel: 10"
TAILSTOCK
Tailstock taper center: M.T. #5
Tailstock quill travel: 6-5/16"
POWER
Main motor: 10 HP 3 Phase
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 89"x44"x65" 110"x44"x65" 140"x44"x65" 185"x44"x65" 230"x44"x65"
Gross weight: 4,660 lb. 5,320 lb. 5,870 lb. 7,230 lb. 8,330 lb.

* Design and specifications are subject to change without notice.
