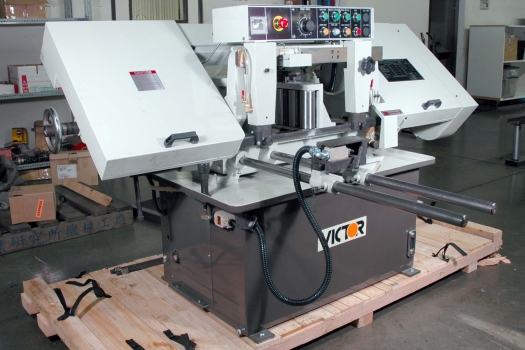

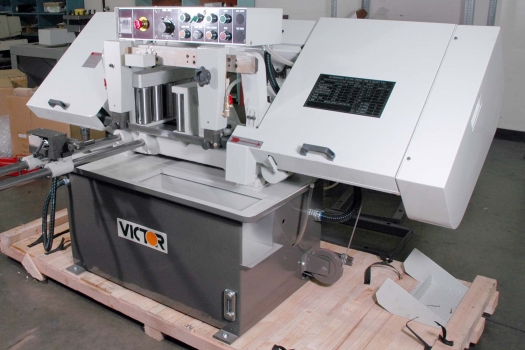

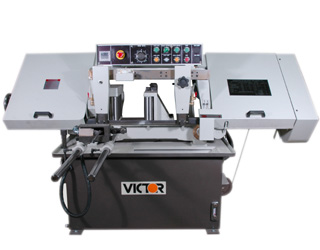

Auto-10HSV Variable Speed Auto Horizontal Bandsaw


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

FEATURES:

  • Infinitely variable blade speed
  • Motorized roller feeding system
  • Adjustable hydraulic feed rate provides an infinite range of cutting pressure
  • Preset cut-piece counter with automatic stop
  • Work height selector
  • Out of stock switch with automatic stop
  • Carbide guides for 1" wide blade
  • Blade breakage detector with automatic stop
  • Built-in coolant system distributed through blade guides
  • Wire blade brush
  • Built-in work light


STANDARD ACCESSORIES:

  • Variable speed blade motor
  • Roller table
  • Adjustable material stop
  • Coolant system
  • Work light
  • Carbide blade guides
  • Standard saw blade - 1 piece
  • Blade wire brush - 1 piece
  • Toolbox
MACHINE
Model: Auto-10HSV
Type: Variable Speed Auto Horizontal Bandsaw
CAPACITY
Round capacity (90º): 10"
Rectangular (90º): 6" x 12" (8" x 8" square)
SAW BLADE
Speed: 75 ~ 220 fpm (variable speed)
Size: 150" x 1"
Tension: Manual
Guides: Carbide guides
Cleaning: Wire brush & flood coolant
POWER
Blade motor: 2 HP 3 Phase
Hydraulic motor: 1/4 HP
Coolant pump motor: 1/8 HP
WORK FEEDING
Work feeding type: Motorized roller feeding
VISE
Vise type: Manual
WEIGHT & DIMENSIONS
Dimensions (LxWxH): 82" x 40" x 54"
Gross weight: 1,760 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Horizontal Bandsaws





Accessories

STANDARD ACCESSORIES:

  • Variable speed blade motor
  • Roller table
  • Adjustable material stop
  • Coolant system
  • Work light
  • Carbide blade guides
  • Standard saw blade - 1 piece
  • Blade wire brush - 1 piece
  • Toolbox

Specifications

MACHINE
Model: Auto-10HSV
Type: Variable Speed Auto Horizontal Bandsaw
CAPACITY
Round capacity (90º): 10"
Rectangular (90º): 6" x 12" (8" x 8" square)
SAW BLADE
Speed: 75 ~ 220 fpm (variable speed)
Size: 150" x 1"
Tension: Manual
Guides: Carbide guides
Cleaning: Wire brush & flood coolant
POWER
Blade motor: 2 HP 3 Phase
Hydraulic motor: 1/4 HP
Coolant pump motor: 1/8 HP
WORK FEEDING
Work feeding type: Motorized roller feeding
VISE
Vise type: Manual
WEIGHT & DIMENSIONS
Dimensions (LxWxH): 82" x 40" x 54"
Gross weight: 1,760 lb.

* Design and specifications are subject to change without notice.
