JF-5EVS Mill 10"x54" Table


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

Victor JF-5EVS electronic variable speed vertical knee mill driven by 5 HP frequency inverter drive comes with rigid one piece bed and special double wall designed box structure column casting. The mill is built to highest quality standards to ensure reliability and consistency.

FEATURES:

  • Table elevating motor
  • Auto lubrication system
  • Meehanite casting
  • Hardened and ground table and slide ways
  • Rigid one piece bed and special double wall designed box structure column casting
  • Square slide ways
  • Turcite-B on X & Y-axis slide ways
  • Double saddle locks
  • Precision hand scraped
  • High precision chromed quill
  • NMTB #40 spindle taper
  • 6" spindle quill travel
  • 5 HP frequency inverter drive motor


STANDARD ACCESSORIES:

  • Variable frequency drive
  • Table elevating motor
  • Auto lubrication system

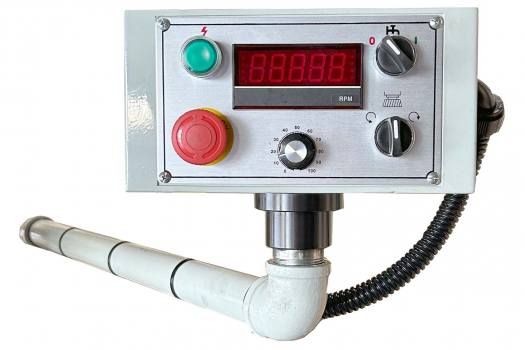

  • Control panel
  • Draw bar
  • Front rubber way cover
  • Rear rubber way cover
  • Tool box with tools
MACHINE
Model: JF-5EVS
Type: Electronic Variable Speed Mill
CAPACITY
Table size: 10" x 54"
Longitudinal travel (X-axis): 40" (no powerfeed) 36" (with powerfeed)
Cross travel (Y-axis): 16"
Vertical travel of knee: 16"
Distance from spindle nose to table: 20.75"
Slide ways: Square
SPINDLE
Spindle motor: 5 HP 3 Ph. (single phase optional)
Spindle taper: NMTB #40
Spindle speeds: 60 ~ 3,600 rpm (inverter drive electronic variable speed)
Quill travel: 6"
Quill feeds: 0.0017" (0.04 mm), 0.0032" (0.08 mm), 0.0053" (0.13 mm)
Quill diameter: 4.13"
Swiveling angle of head: 90°
Head inward & outward: 45°
WEIGHT & DIMENSIONS
Overall height: 84"
Overall depth: 77.18"
Overall width: 105"
Packing Dimensions (LxWxH): 70" x 62" x 76"
Approx. Net weight: 3,590 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Vertical Knee Mills





Accessories

STANDARD ACCESSORIES:

  • Variable frequency drive
  • Table elevating motor
  • Auto lubrication system
  • Control panel
  • Draw bar
  • Front rubber way cover
  • Rear rubber way cover
  • Tool box with tools

Specifications

MACHINE
Model: JF-5EVS
Type: Electronic Variable Speed Mill
CAPACITY
Table size: 10" x 54"
Longitudinal travel (X-axis): 40" (no powerfeed) 36" (with powerfeed)
Cross travel (Y-axis): 16"
Vertical travel of knee: 16"
Distance from spindle nose to table: 20.75"
Slide ways: Square
SPINDLE
Spindle motor: 5 HP 3 Ph. (single phase optional)
Spindle taper: NMTB #40
Spindle speeds: 60 ~ 3,600 rpm (inverter drive electronic variable speed)
Quill travel: 6"
Quill feeds: 0.0017" (0.04 mm), 0.0032" (0.08 mm), 0.0053" (0.13 mm)
Quill diameter: 4.13"
Swiveling angle of head: 90°
Head inward & outward: 45°
WEIGHT & DIMENSIONS
Overall height: 84"
Overall depth: 77.18"
Overall width: 105"
Packing Dimensions (LxWxH): 70" x 62" x 76"
Approx. Net weight: 3,590 lb.

* Design and specifications are subject to change without notice.
