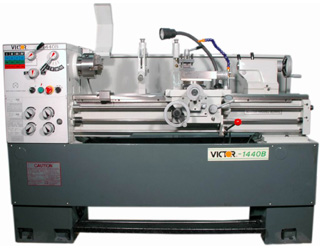

1440GS Lathe


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

Industrial strength high-speed precision gear-head lathe yet with uncompromising value and performance.

FEATURES:

  • Hardened and ground bedways and spindle
  • Hardened and precision ground gears in headstock
  • Headstock with tapered roller bearings
  • D1-4 camlock spindle nose
  • Jog button for easy spindle speed changes
  • Inch/metric gearbox
  • Feed rod with safety overload clutch
  • Full length foot brake
  • Front loading chip pan
  • 16 spindle speeds
  • 3 HP two-speed main spindle motor

STANDARD ACCESSORIES:

  • Removable gap
  • Tailstock
  • Coolant system
  • Chuck cover with limit switch
  • Full length foot brake
  • Change gears
  • Front loading chip pan
  • Threading dial indicator
  • Center sleeve
  • Dead centers M.T. #3
  • Leveling screws and pads
  • Manual and parts list


MACHINE INCLUDES:

  1. 6" 3-jaw chuck
  2. 8" 4-jaw chuck
  3. Steady rest with brass tips (3.60" capacity)
  4. Follow rest
  5. 4-way tool post
  6. Face plate
  7. Micro carriage stop
  8. Full length splash guard
  9. Halogen work light
  10. Chuck cover with limit switch
MACHINE
Model(s): 1440GS
Type: Precision High Speed Lathe
CAPACITY
Swing over bed: 14"
Swing over cross slide: 8.63"
Swing over gap: 19.92"
Bed width: 8"
Distance between centers: 39.4"
HEADSTOCK
Spindle bore diameter: 1.50"
Spindle bore taper: M.T. #5
Taper of center in sleeve: M.T. #3
Spindle nose: D1-4
Number of spindle speeds: 16 Steps
Range of spindle speeds (rpm): 45 ~ 1,800 rpm
Speed selections: 45, 70, 90, 108, 140, 165, 215, 255, 330, 385, 510, 585, 770, 900, 1170, 1800
THREADS & FEEDS
Range of longitudinal feeds: 0.0012" ~ 0.0294"/rev.
Range of cross feeds: 0.00048" ~ 0.0118"/rev.
Inch threads: 4 ~ 112 TPI x 40 kinds
Metric threads: 0.45 ~ 7.5 mm x 22 kinds
CARRIAGE
Cross slide travel: 7"
Compound slide travel: 3.75"
TAILSTOCK
Tailstock taper center: M.T. #3
Tailstock quill travel: 4.75"
POWER
Main motor: 3 HP 3 Phase
Coolant pump: 1/16 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 76"x30"x57"
Gross weight: 1,940 lb.



Click to download brochure in PDF
