JF-5VS Mill 10"x54" Table


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

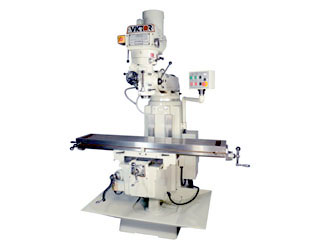

Victor JF-5VS variable speed vertical knee mill comes with a rigid one-piece bed and a special double wall designed box structure column casting. The mill is built to the highest quality standards to ensure reliability and consistency.

FEATURES:

  • Table elevating motor
  • Auto lubrication system
  • Meehanite casting
  • Hardened and ground table and slideways
  • Rigid one-piece bed and a special double wall designed box structure column casting
  • Square slideways
  • Turcite-B on X & Y-axis slideways
  • Double saddle locks
  • Precision hand scraped
  • High precision chromed quill
  • NMTB #40 spindle taper
  • 6" spindle quill travel

See JF-5VSL (11.81"x59") Table Mill


STANDARD ACCESSORIES:

  • Table elevating motor
  • Auto lubrication system
  • Control panel
  • Draw bar
  • Front rubber way cover
  • Rear rubber way cover
  • Tool box with tools
MACHINE
Model: JF-5VS
Type: Variable Speed Mill
CAPACITY
Table size: 10" x 54"
Longitudinal travel (X-axis): 40" (no powerfeed) 36" (with powerfeed)
Cross travel (Y-axis): 16"
Vertical travel of knee: 16"
Distance from spindle nose to table: 20.75"
Slide ways: Square
SPINDLE
Spindle motor: 5 HP 3 Phase
Spindle taper: NMTB #40
Spindle speeds: 60 ~ 3,600 rpm
Quill travel: 6"
Quill feeds: 0.0017" (0.04 mm), 0.0032" (0.08 mm), 0.0053" (0.13 mm)
Quill diameter: 4.13"
Swiveling angle of head: 90°
Head inward & outward: 45°
WEIGHT & DIMENSIONS
Overall height: 105"
Overall depth: 77.18"
Overall width: 105"
Packing Dimensions (LxWxH): 70" x 62" x 76"
Approx. Net weight: 3,590 lb.



Click to download brochure in PDF
