JF-4VS Mill 10"x54" Table


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

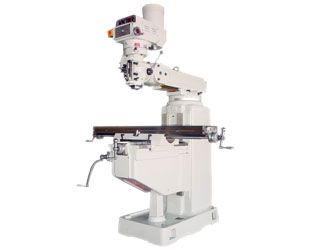

Victor JF-4VS variable speed vertical knee mill comes with rigid one-piece bed and a special double wall designed box structure column casting. The mill is built to highest quality standards to ensure reliability and consistency.

FEATURES:

  • Meehanite casting
  • Hardened and ground table and slideways
  • Rigid one-piece bed and a special double wall designed box structure column casting
  • Square slideways
  • Turcite-B on X & Y-axis slideways
  • Double saddle locks
  • Precision hand scraped
  • High precision chromed quill
  • Built-in one shot lube system


STANDARD ACCESSORIES:

  • Draw bar
  • Front rubber way cover
  • Rear rubber way cover
  • One-shot lube system
  • Tool box with tools
MACHINE
Model: JF-4VS
Type: Variable Speed Mill
CAPACITY
Table size: 10" x 54"
Longitudinal travel (X-axis): 40" (no powerfeed) 36" (with powerfeed)
Cross travel (Y-axis): 16"
Vertical travel of knee: 16"
Distance from spindle nose to table: 16.88"
Slide ways: Square
SPINDLE
Spindle motor: 3 HP 3 Phase
Spindle taper: R8
Spindle speeds: 60 ~ 4,200 rpm
Quill travel: 5"
Quill feeds: 0.0017" (0.04 mm), 0.0032" (0.08 mm), 0.0053" (0.13 mm)
Quill diameter: 3-3/8"
Swiveling angle of head: 90°
Head inward & outward: 45°
WEIGHT & DIMENSIONS
Overall height: 84"
Overall depth: 77.18"
Overall width: 105"
Packing Dimensions (LxWxH): 70" x 62" x 76"
Approx. Net weight: 3,450 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Vertical Knee Mills





Accessories

STANDARD ACCESSORIES:

  • Draw bar
  • Front rubber way cover
  • Rear rubber way cover
  • One-shot lube system
  • Tool box with tools

Specifications

MACHINE
Model: JF-4VS
Type: Variable Speed Mill
CAPACITY
Table size: 10" x 54"
Longitudinal travel (X-axis): 40" (no powerfeed) 36" (with powerfeed)
Cross travel (Y-axis): 16"
Vertical travel of knee: 16"
Distance from spindle nose to table: 16.88"
Slide ways: Square
SPINDLE
Spindle motor: 3 HP 3 Phase
Spindle taper: R8
Spindle speeds: 60 ~ 4,200 rpm
Quill travel: 5"
Quill feeds: 0.0017" (0.04 mm), 0.0032" (0.08 mm), 0.0053" (0.13 mm)
Quill diameter: 3-3/8"
Swiveling angle of head: 90°
Head inward & outward: 45°
WEIGHT & DIMENSIONS
Overall height: 84"
Overall depth: 77.18"
Overall width: 105"
Packing Dimensions (LxWxH): 70" x 62" x 76"
Approx. Net weight: 3,450 lb.

* Design and specifications are subject to change without notice.
