JF-3VS Mill 10"x50" Table

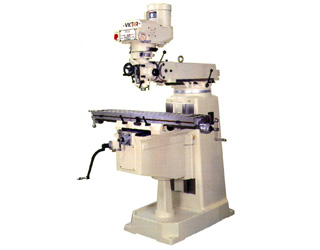

Machine may be shown with optional accessories.
Victor JF-3VS variable speed vertical knee mill comes with rigid one-piece bed and box structure column casting. The mill is built to highest quality standards to ensure reliability and consistency.
FEATURES:
- Meehanite casting
- Hardened and ground table and slideways
- Rigid one-piece bed and box structure column casting
- Turcite-B on X & Y-axis slideways
- Double saddle locks
- Precision hand scraped
- High precision chromed quill
- Built-in one shot lube system
Accessories
STANDARD ACCESSORIES:
- Draw bar
- Front rubber way cover
- Rear rubber way cover
- One-shot lube system
- Tool box with tools
Specifications
| MACHINE | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model: | JF-3VS | ||||||||
| Type: | Variable Speed Mill | ||||||||
| CAPACITY | |||||||||
| Table size: | 10" x 50" | ||||||||
| Longitudinal travel (X-axis): | 36" (no powerfeed) | 33" (with powerfeed) | |||||||
| Cross travel (Y-axis): | 16" | ||||||||
| Vertical travel of knee: | 16" | ||||||||
| Distance from spindle nose to table: | 18.5" | ||||||||
| Slide ways: | Dovetail | ||||||||
| SPINDLE | |||||||||
| Spindle motor: | 3 HP 3 Phase | ||||||||
| Spindle taper: | R8 | ||||||||
| Spindle speeds: | 60 ~ 4,200 rpm | ||||||||
| Quill travel: | 5" | ||||||||
| Quill feeds: | 0.0017" (0.04 mm), 0.0032" (0.08 mm), 0.0053" (0.13 mm) | ||||||||
| Quill diameter: | 3-3/8" | ||||||||
| Swiveling angle of head: | 90° | ||||||||
| Head inward & outward: | 45° | ||||||||
| WEIGHT & DIMENSIONS | |||||||||
| Overall height: | 83" | ||||||||
| Overall depth: | 76.15" | ||||||||
| Overall width: | 89" | ||||||||
| Packing Dimensions (LxWxH): | 70" x 62" x 76" | ||||||||
| Approx. Net weight: | 2,640 lb. | ||||||||
* Design and specifications are subject to change without notice.
Machine may be shown with optional accessories
