2960T / 2980T / 29120T / 29170T Lathe

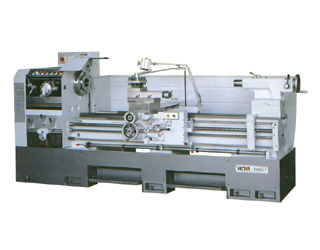

Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

Tough built to last with large 4-1/8" spindle bore, 4-way rapid traverse, and 20 HP main motor. The best in its class to handle utmost demanding work.

FEATURES:

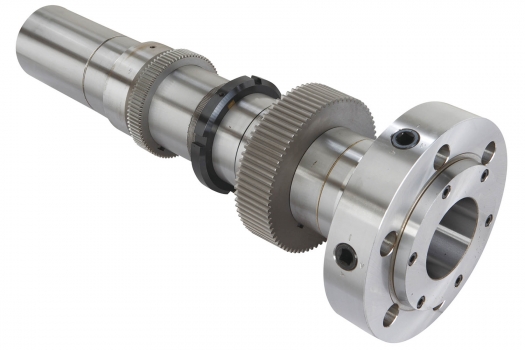

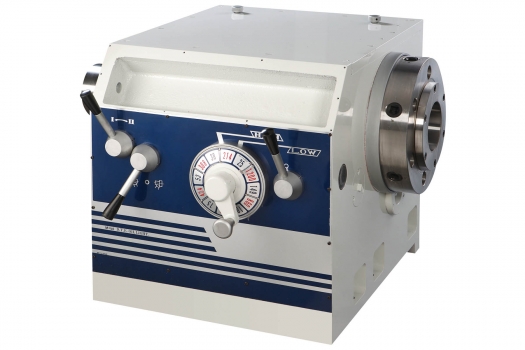

  • High precision hardened and ground spindle
  • Hardened and precision ground induction bedways with high tension mechanize casting iron
  • Spindle is supported by 3 bearings (2 taper roller bearings and one ball bearing)
  • 4-1/8" large spindle bore with D1-11 camlock spindle nose
  • Rapid and positive magnetic disc brake system is operated by emergency switch control or foot brake

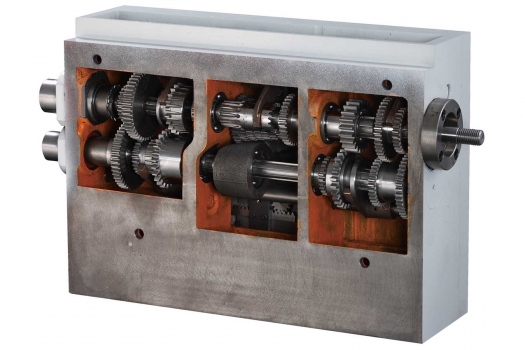

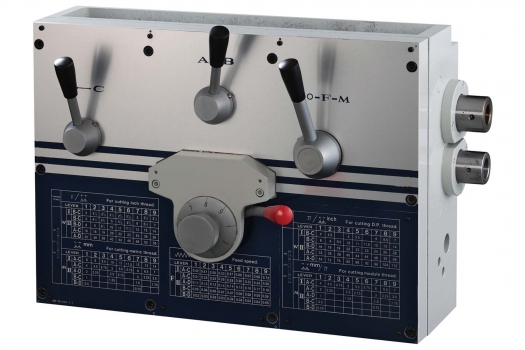

  • All running parts are lubricated by a pressure pump in gearbox

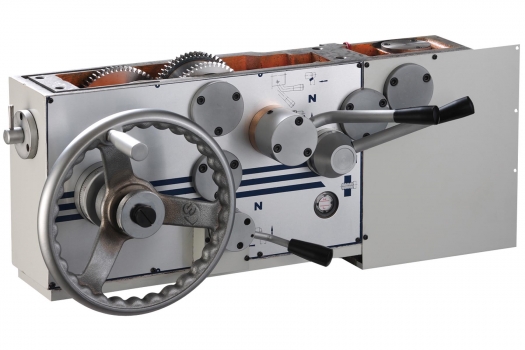

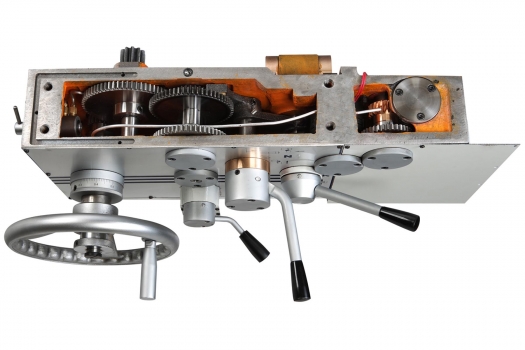

  • Sliding, surfacing, and screw-cutting motions are fully interlocked in apron
  • A cone-clutch device in the apron to prevent overload

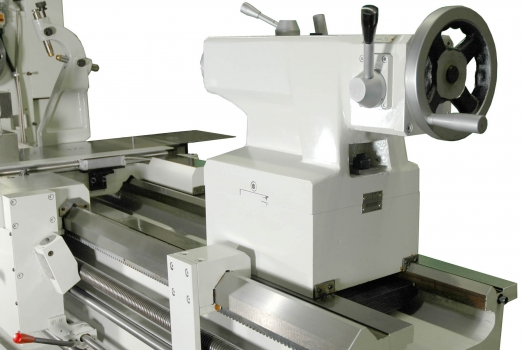

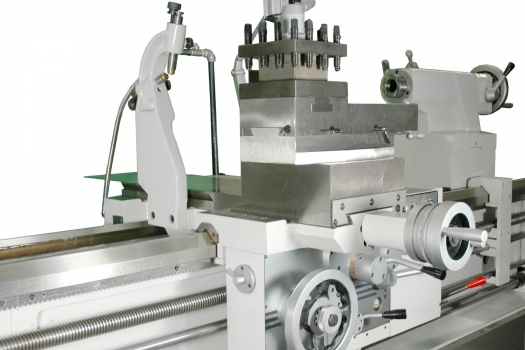

  • Dual speed tailstock quill (ratio 1:1 and 1:4) provides easy drilling operation
  • 4-way power rapid traverse
  • Ampere meter for power consumption monitoring
  • Jog button for easy spindle speed changes
  • 20 HP main motor

24" swing over bed model
2400T Series Lathe


STANDARD ACCESSORIES:

  • 4-way power rapid traverse
  • Removable gap
  • Tailstock with duo speed quill
  • Coolant system
  • Chuck cover with limit switch
  • D.P. / module thread change gears
  • Threading dial indicator
  • Dead center M.T. #5
  • Leveling screws and pads
  • Manual and parts list

MACHINE INCLUDES:

  1. 20" 4-jaw chuck
  2. Steady rest with rollers
  3. Follow rest
  4. 4-way tool post
  5. Face plate
  6. Micro bed stop
  7. Halogen work light
  8. Chuck cover with limit switch
MACHINE
Model(s): 2960T 2980T 29120T 29170T
Type: Precision Heavy Duty Lathe
CAPACITY
Swing over bed: 29-1/8"
Swing over cross slide: 20-1/2"
Swing over gap: 37-25/32"
Bed width: 16-1/2"
Distance between centers: 53" 73" 115" 167"
HEADSTOCK
Spindle bore diameter: 4.13"
Spindle bore taper: 108 x 1 : 20
Taper of center in sleeve: M.T. #5
Spindle nose: D1-11
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 25 ~ 1,200 rpm
Speed selections: 25, 38, 53, 75, 108, 149, 214, 308, 424, 603, 860, 1200
THREADS & FEEDS
Range of longitudinal feeds: 0.0012" ~ 0.0287"/rev.
Range of cross feeds: 0.0004" ~ 0.0118"/rev.
Inch threads: 2 ~ 56 TPI x 45 kinds
Metric threads: 0.5 ~ 14 mm x 31 kinds
CARRIAGE
Cross slide travel: 16-1/4"
Compound slide travel: 9"
TAILSTOCK
Tailstock taper center: M.T. #5
Tailstock quill travel: 7"
POWER
Main motor: 20 HP 3 Phase
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 120"x54"x75" 140"x54"x75" 190"x54"x75" 233"x54"x75"
Gross weight: 8,730 lb. 9,200 lb. 10,500 lb. 11,440 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Engine Lathes





Accessories

STANDARD ACCESSORIES:

  • 4-way power rapid traverse
  • Removable gap
  • Tailstock with duo speed quill
  • Coolant system
  • Chuck cover with limit switch
  • D.P. / module thread change gears
  • Threading dial indicator
  • Dead center M.T. #5
  • Leveling screws and pads
  • Manual and parts list

MACHINE INCLUDES:

  1. 20" 4-jaw chuck
  2. Steady rest with rollers
  3. Follow rest
  4. 4-way tool post
  5. Face plate
  6. Micro bed stop
  7. Halogen work light
  8. Chuck cover with limit switch

Specifications

MACHINE
Model(s): 2960T 2980T 29120T 29170T
Type: Precision Heavy Duty Lathe
CAPACITY
Swing over bed: 29-1/8"
Swing over cross slide: 20-1/2"
Swing over gap: 37-25/32"
Bed width: 16-1/2"
Distance between centers: 53" 73" 115" 167"
HEADSTOCK
Spindle bore diameter: 4.13"
Spindle bore taper: 108 x 1 : 20
Taper of center in sleeve: M.T. #5
Spindle nose: D1-11
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 25 ~ 1,200 rpm
Speed selections: 25, 38, 53, 75, 108, 149, 214, 308, 424, 603, 860, 1200
THREADS & FEEDS
Range of longitudinal feeds: 0.0012" ~ 0.0287"/rev.
Range of cross feeds: 0.0004" ~ 0.0118"/rev.
Inch threads: 2 ~ 56 TPI x 45 kinds
Metric threads: 0.5 ~ 14 mm x 31 kinds
CARRIAGE
Cross slide travel: 16-1/4"
Compound slide travel: 9"
TAILSTOCK
Tailstock taper center: M.T. #5
Tailstock quill travel: 7"
POWER
Main motor: 20 HP 3 Phase
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 120"x54"x75" 140"x54"x75" 190"x54"x75" 233"x54"x75"
Gross weight: 8,730 lb. 9,200 lb. 10,500 lb. 11,440 lb.

* Design and specifications are subject to change without notice.
