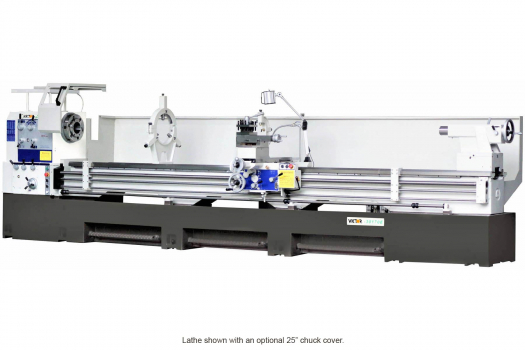

3060E / 3080E / 30100E / 30130E / 30170E Lathe


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

Equipped with a large 4.6" spindle bore, 4-way power rapid traverse, and 15 HP 6 pole motor to handle the utmost demanding work conditions.

FEATURES:

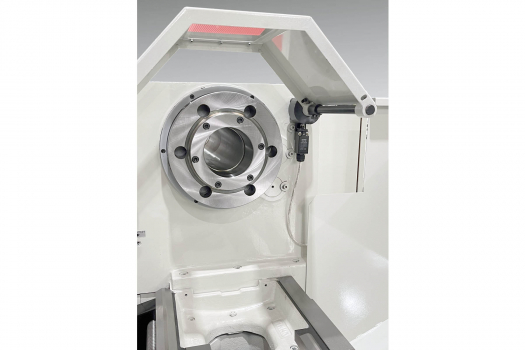

  • 4.6" spindle bore with D1-11 camlock spindle nose

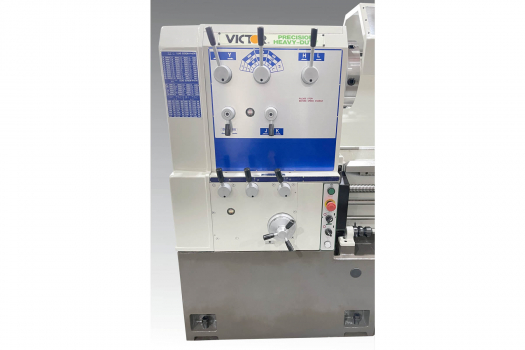

  • Headstock gears are hardened and ground alloy steel for long lasting accuracy
  • One-piece solid base for high rigidity and low vibration
  • Thermal treated Meehanite casting bed
  • Spindle is supported at 3 points with high-precision bearings
  • Overload device to ensure safety when operating

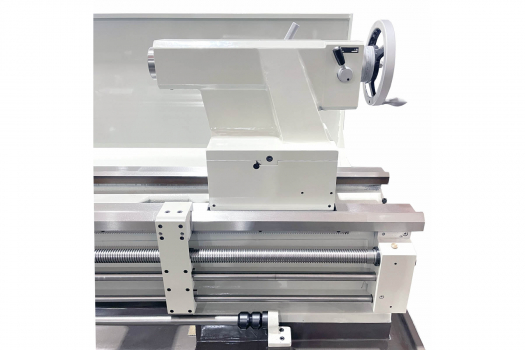

  • Dual-speed tailstock quill provides faster setups
  • Universal gearbox design for both inch and metric threading

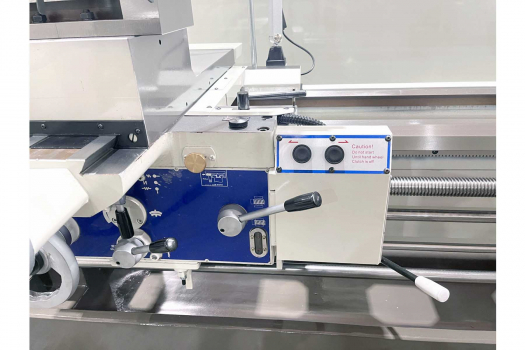

  • 4-way power rapid traverse
  • 15 HP 6 pole motor features more torque at a lower RPM


STANDARD ACCESSORIES:

  • 4-way power rapid traverse
  • Center sleeve
  • Auto-feed stopper rings
  • Coolant system
  • Thread dial indicator
  • Safety pin
  • Dead centers M.T. #5
  • Tool box
  • Leveling pads

MACHINE INCLUDES:

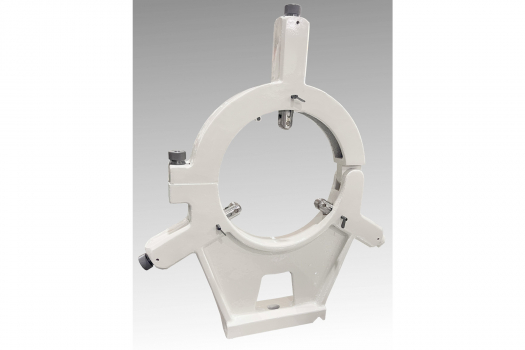

  1. Steady rest with rollers

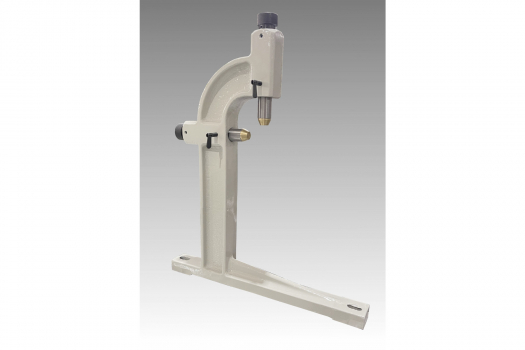

  2. Follow rest
  3. 4-way tool post
  4. Full length splash guard

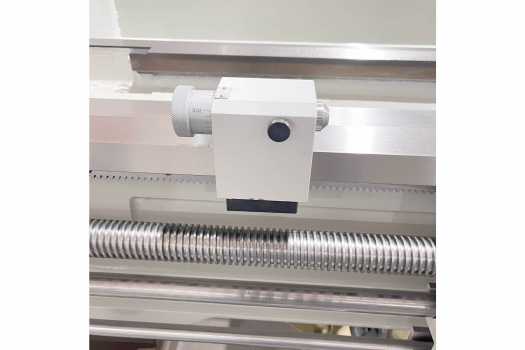

  5. Micro carriage stop
  6. Halogen work light
  7. Chuck cover (16") with limit switch
MACHINE
Model(s): 3060E 3080E 30100E 30130E 30170E
Type: Precision Heavy-Duty Lathe
CAPACITY
Swing over bed: 30"
Swing over cross slide: 21-1/4"
Swing over gap: 39"
Bed width: 15-3/4"
Distance between centers: 59" 79" 98" 126" 166"
HEADSTOCK
Spindle bore diameter: 4.6"
Spindle bore taper: M.T. #7
Taper of center in sleeve: M.T. #5
Spindle nose: D1-11
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 10 ~ 1,000 rpm
Speed selections: 10, 18, 25, 35, 60, 85, 120, 200, 280, 400, 660, 1000
THREADS & FEEDS
Range of longitudinal feeds: 0.0022" ~ 0.03"/rev.
Range of cross feeds: 0.0013" ~ 0.0175"/rev.
Inch threads: 2 ~ 56 TPI x 44 kinds
Metric threads: 0.5 ~ 14 mm x 24 kinds
CARRIAGE
Cross slide travel: 17-3/4"
Compound slide travel: 7-7/8"
TAILSTOCK
Tailstock taper center: M.T. #5
Tailstock quill travel: 6-1/2"
POWER
Main motor: 15 HP (6 pole) 3 Phase
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 120"x46"x76" 145"x46"x76" 170"x46"x76" 195"x46"x76" 235"x46"x76"
Gross weight: 6,200 lb. 7,080 lb. 7,630 lb. 8,730 lb. 11,510 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Engine Lathes





Accessories

STANDARD ACCESSORIES:

  • 4-way power rapid traverse
  • Center sleeve
  • Auto-feed stopper rings
  • Coolant system
  • Thread dial indicator
  • Safety pin
  • Dead centers M.T. #5
  • Tool box
  • Leveling pads

MACHINE INCLUDES:

  1. Steady rest with rollers
  2. Follow rest
  3. 4-way tool post
  4. Full length splash guard
  5. Micro carriage stop
  6. Halogen work light
  7. Chuck cover (16") with limit switch

Specifications

MACHINE
Model(s): 3060E 3080E 30100E 30130E 30170E
Type: Precision Heavy-Duty Lathe
CAPACITY
Swing over bed: 30"
Swing over cross slide: 21-1/4"
Swing over gap: 39"
Bed width: 15-3/4"
Distance between centers: 59" 79" 98" 126" 166"
HEADSTOCK
Spindle bore diameter: 4.6"
Spindle bore taper: M.T. #7
Taper of center in sleeve: M.T. #5
Spindle nose: D1-11
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 10 ~ 1,000 rpm
Speed selections: 10, 18, 25, 35, 60, 85, 120, 200, 280, 400, 660, 1000
THREADS & FEEDS
Range of longitudinal feeds: 0.0022" ~ 0.03"/rev.
Range of cross feeds: 0.0013" ~ 0.0175"/rev.
Inch threads: 2 ~ 56 TPI x 44 kinds
Metric threads: 0.5 ~ 14 mm x 24 kinds
CARRIAGE
Cross slide travel: 17-3/4"
Compound slide travel: 7-7/8"
TAILSTOCK
Tailstock taper center: M.T. #5
Tailstock quill travel: 6-1/2"
POWER
Main motor: 15 HP (6 pole) 3 Phase
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 120"x46"x76" 145"x46"x76" 170"x46"x76" 195"x46"x76" 235"x46"x76"
Gross weight: 6,200 lb. 7,080 lb. 7,630 lb. 8,730 lb. 11,510 lb.

* Design and specifications are subject to change without notice.
