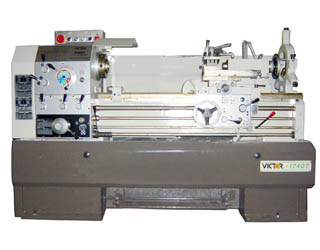

1740T / 1760T / 1780T Lathe


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

High performance lathe with 17" swing over bed and option up to 80" between centers. Lathe is built to last with high quality construction for most demanding applications.

FEATURES:

  • Hardened and ground chromium molybdenum steel gears in headstock
  • Hardened and ground bedways at Rockwell 55°
  • Spindle is supported at 3 points by precision bearings
  • Universal gearbox provides inch/metric threading without changing gears
  • Mechanical overload safety device in carriage
  • Rigid one piece Meehanite casting base
  • Low voltage controls for safety operation


STANDARD ACCESSORIES:

  • Removable gap
  • Tailstock
  • Coolant system
  • Chuck cover with limit switch
  • Full length foot brake
  • D.P. / module thread change gears
  • Threading dial indicator
  • Center sleeve
  • Leveling screws and pads
  • Manual and parts list

OPTIONAL SPECIAL PACKAGE INCLUDES:

  1. 8" 3-jaw chuck
  2. 10" 4-jaw chuck
  3. Steady rest with rollers
  4. Follow rest
  5. 4-way tool post
  6. Face plate
  7. Halogen work light
  8. Full length splash guard
  9. Chuck cover with limit switch
MACHINE
Model(s): 1740T 1760T 1780T
Type: Precision Heavy Duty Lathe
CAPACITY
Swing over bed: 17"
Swing over cross slide: 9.63"
Swing over gap: 26"
Bed width: 11-3/4"
Distance between centers: 40" 60" 80"
HEADSTOCK
Spindle bore diameter: 2.28"
Spindle bore taper: M.T. #6
Taper of center in sleeve: M.T. #4
Spindle nose: D1-6
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 50 ~ 1,800 rpm
Speed selections: 50, 72, 101, 147, 175, 253, 355, 515, 612, 885, 1239, 1800
THREADS & FEEDS
Range of longitudinal feeds: 0.002" ~ 0.028"/rev.
Range of cross feeds: 0.001" ~ 0.014"/rev.
Inch threads: 4 ~ 56 TPI x 36 kinds
Metric threads: 0.5 ~ 7 mm x 22 kinds
CARRIAGE
Cross slide travel: 8-5/8"
Compound slide travel: 7"
TAILSTOCK
Tailstock taper center: M.T. #4
Tailstock quill travel: 6"
POWER
Main motor: 7.5 HP 3 Phase
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 88"x38"x65" 108"x38"x65" 131"x38"x65"
Gross weight: 3,520 lb. 4,070 lb. 4,750 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Engine Lathes





Accessories

STANDARD ACCESSORIES:

  • Removable gap
  • Tailstock
  • Coolant system
  • Chuck cover with limit switch
  • Full length foot brake
  • D.P. / module thread change gears
  • Threading dial indicator
  • Center sleeve
  • Leveling screws and pads
  • Manual and parts list

OPTIONAL SPECIAL PACKAGE INCLUDES:

  1. 8" 3-jaw chuck
  2. 10" 4-jaw chuck
  3. Steady rest with rollers
  4. Follow rest
  5. 4-way tool post
  6. Face plate
  7. Halogen work light
  8. Full length splash guard
  9. Chuck cover with limit switch

Specifications

MACHINE
Model(s): 1740T 1760T 1780T
Type: Precision Heavy Duty Lathe
CAPACITY
Swing over bed: 17"
Swing over cross slide: 9.63"
Swing over gap: 26"
Bed width: 11-3/4"
Distance between centers: 40" 60" 80"
HEADSTOCK
Spindle bore diameter: 2.28"
Spindle bore taper: M.T. #6
Taper of center in sleeve: M.T. #4
Spindle nose: D1-6
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 50 ~ 1,800 rpm
Speed selections: 50, 72, 101, 147, 175, 253, 355, 515, 612, 885, 1239, 1800
THREADS & FEEDS
Range of longitudinal feeds: 0.002" ~ 0.028"/rev.
Range of cross feeds: 0.001" ~ 0.014"/rev.
Inch threads: 4 ~ 56 TPI x 36 kinds
Metric threads: 0.5 ~ 7 mm x 22 kinds
CARRIAGE
Cross slide travel: 8-5/8"
Compound slide travel: 7"
TAILSTOCK
Tailstock taper center: M.T. #4
Tailstock quill travel: 6"
POWER
Main motor: 7.5 HP 3 Phase
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 88"x38"x65" 108"x38"x65" 131"x38"x65"
Gross weight: 3,520 lb. 4,070 lb. 4,750 lb.

* Design and specifications are subject to change without notice.
