4060RF / 4080RF / 40120RF / 40160RF / 40200RF / 40240RF

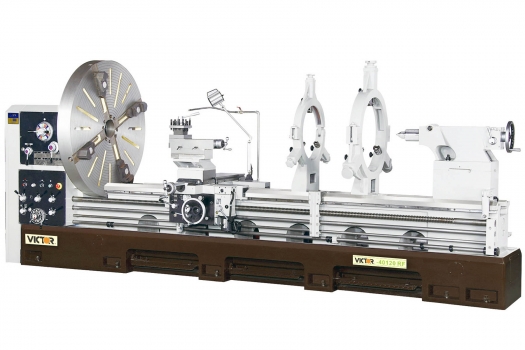

Machine may be shown with optional accessories.
Victor 4000RF series lathe is designed to provide outstanding performance and structural rigidity with a large 6.02" spindle bore suitable for turning and cutting a large workpiece.
FEATURES:
- 6.02" spindle bore is designed for large chucking capability
- Hardened and precision ground alloy steel gears and shafts
- The precision ground spindle is supported at three points by high precision bearings
- One-piece structure bed to enhance the machine life and working performance
- High tensile ribbed wide bed with hardened and precision ground bed ways for rigidity and low vibration
- Universal gearbox for inch, metric, D.P., and module threading without changing gears
- Central lubrication system can be operated automatically or manually for slideways
- Adjustable safety overload device
- Rotating type speed changing system for easy operation
- Tailstock is equipped with a two-speed quill that is suitable for heavy-duty and easy drilling work
- 4-way power rapid traverse
- Automatic stopper for longitudinal feeds
See 3600RF Series Lathe (36" swing over the bed)
Accessories
STANDARD ACCESSORIES:
- Center sleeve
- Dead center M.T. #6
- Auto lubrication system
- Coolant system
- Tailstock with two-speed quill
- Removable gap
- 4-way power rapid traverse
- Leveling screws and pads
- Manual and parts list
- Tool box with tools
MACHINE INCLUDES:
- Steady rest with rollers
- 4-way tool post
- Double chuck system
- Halogen work light
- On-carriage splash guard
- Chuck cover with limit switch
Specifications
| MACHINE | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model(s): | 4060RF | 4080RF | 40120RF | 40160RF | 40200RF | 40240RF | |||
| Type: | Big Bore Heavy-Duty Lathe | ||||||||
| CAPACITY | |||||||||
| Swing over bed: | 40" | ||||||||
| Swing over cross slide: | 30.70" | ||||||||
| Swing over gap: | 51" | ||||||||
| Bed width: | 20" | ||||||||
| Distance between centers: | 59.06" | 78.74" | 118.11" | 157.48" | 196.85" | 236.22" | |||
| HEADSTOCK | |||||||||
| Spindle bore diameter: | 6.02" (9.06" Opt.) | ||||||||
| Taper of center in sleeve: | M.T. #6 | ||||||||
| Spindle nose: | A2-11 (Opt. 9.06" bore is A2-15) | ||||||||
| Number of spindle speeds: | 12 Steps | ||||||||
| Range of spindle speeds (rpm): | 15 ~ 1,000 rpm | ||||||||
| Speed selections: | |||||||||
| THREADS & FEEDS | |||||||||
| Range of longitudinal feeds: | 0.0020" ~ 0.0276"/rev. | ||||||||
| Range of cross feeds: | 0.0010" ~ 0.0138"/rev. | ||||||||
| Inch threads: | 2 ~ 28 TPI x 36 kinds | ||||||||
| Metric threads: | 0.8 ~ 14 mm x 33 kinds | ||||||||
| CARRIAGE | |||||||||
| Cross slide travel: | 23" | ||||||||
| Compound slide travel: | 10" | ||||||||
| TAILSTOCK | |||||||||
| Tailstock taper center: | M.T. #6 | ||||||||
| Tailstock quill travel: | 9" | ||||||||
| POWER | |||||||||
| Main motor: | 30 HP 3 Phase | ||||||||
| Coolant pump: | 1/8 HP | ||||||||
| WEIGHT & DIMENSIONS | |||||||||
| Shipping dimensions (LxWxH): | 138"x71"x83" | 158"x71"x83" | 197"x71"x83" | 237"x71"x83" | 276"x71"x83" | 315"x71"x83" | |||
| Gross weight: | 13,230 lb. | 14,330 lb. | 15,870 lb. | 17,640 lb. | 19,400 lb. | 20,060 lb. | |||
* Design and specifications are subject to change without notice.
Machine may be shown with optional accessories
