3660RF / 3680RF / 36120RF / 36160RF / 36200RF / 36240RF


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

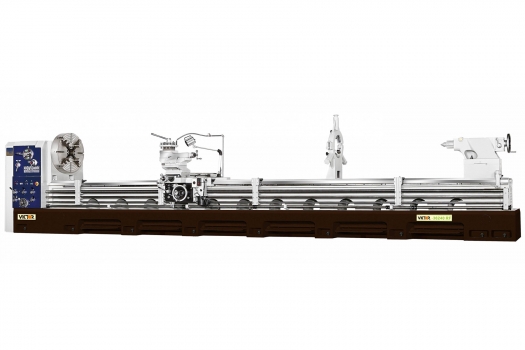

Machine may be shown with optional accessories.

Victor 3600RF series lathe is designed to provide outstanding performance and structural rigidity with large 6.02" spindle bore suitable for turning and cutting a large workpiece.

FEATURES:

  • 6.02" spindle bore is designed for large chucking capability
  • Hardened and precision ground alloy steel gears and shafts
  • The precision ground spindle is supported at three points by high precision bearings
  • One piece structure bed to enhance the machine life and working performance
  • High tensile ribbed wide bed with hardened and precision ground bed ways for rigidity and low vibration
  • Universal gearbox for inch, metric, D.P., and module threading without changing gears
  • Central lubrication system can be operated automatically or manually for slide ways
  • Adjustable safety overload device
  • Rotating type speed changing system for easy operation
  • Tailstock is equipped with a two-speed quill that is suitable for heavy duty and easy drilling work
  • 4-way power rapid traverse
  • Automatic stopper for longitudinal feeds

See 4000RF Series Lathe (40" swing over the bed)


STANDARD ACCESSORIES:

  • Center sleeve
  • Dead center M.T. #6
  • Auto lubrication system
  • Coolant system
  • Tailstock with two-speed quill
  • Removable gap
  • 4-way power rapid traverse
  • Leveling screws and pads
  • Manual and parts list
  • Tool box with tools

MACHINE INCLUDES:

  1. Steady rest with rollers
  2. 4-way tool post
  3. Double chuck system
  4. Halogen work light
  5. On-carriage splash guard
  6. Chuck cover with limit switch
MACHINE
Model(s): 3660RF 3680RF 36120RF 36160RF 36200RF 36240RF
Type: Big Bore Heavy Duty Lathe
CAPACITY
Swing over bed: 36"
Swing over cross slide: 26.77"
Swing over gap: 47"
Bed width: 20"
Distance between centers: 59.06" 78.74" 118.11" 157.48" 196.85" 236.22"
HEADSTOCK
Spindle bore diameter: 6.02" (9.06" Opt.)
Spindle bore taper:
Taper of center in sleeve: M.T. #6
Spindle nose: A2-11 (A2-15 Opt.)
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 15 ~ 1,000 rpm
Speed selections:
THREADS & FEEDS
Range of longitudinal feeds: 0.0020" ~ 0.0276"/rev.
Range of cross feeds: 0.0010" ~ 0.0138"/rev.
Inch threads: 2 ~ 28 TPI x 36 kinds
Metric threads: 0.8 ~ 14 mm x 33 kinds
CARRIAGE
Cross slide travel: 23"
Compound slide travel: 10"
TAILSTOCK
Tailstock taper center: M.T. #6
Tailstock quill travel: 9"
POWER
Main motor: 30 HP 3 Phase
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 138"x71"x83" 158"x71"x83" 197"x71"x83" 237"x71"x83" 276"x71"x83" 315"x71"x83"
Gross weight: 13,010 lb. 14,110 lb. 15,650 lb. 17,420 lb. 19,180 lb. 19,840 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Engine Lathes





Accessories

STANDARD ACCESSORIES:

  • Center sleeve
  • Dead center M.T. #6
  • Auto lubrication system
  • Coolant system
  • Tailstock with two-speed quill
  • Removable gap
  • 4-way power rapid traverse
  • Leveling screws and pads
  • Manual and parts list
  • Tool box with tools

MACHINE INCLUDES:

  1. Steady rest with rollers
  2. 4-way tool post
  3. Double chuck system
  4. Halogen work light
  5. On-carriage splash guard
  6. Chuck cover with limit switch

Specifications

MACHINE
Model(s): 3660RF 3680RF 36120RF 36160RF 36200RF 36240RF
Type: Big Bore Heavy Duty Lathe
CAPACITY
Swing over bed: 36"
Swing over cross slide: 26.77"
Swing over gap: 47"
Bed width: 20"
Distance between centers: 59.06" 78.74" 118.11" 157.48" 196.85" 236.22"
HEADSTOCK
Spindle bore diameter: 6.02" (9.06" Opt.)
Spindle bore taper:
Taper of center in sleeve: M.T. #6
Spindle nose: A2-11 (A2-15 Opt.)
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 15 ~ 1,000 rpm
Speed selections:
THREADS & FEEDS
Range of longitudinal feeds: 0.0020" ~ 0.0276"/rev.
Range of cross feeds: 0.0010" ~ 0.0138"/rev.
Inch threads: 2 ~ 28 TPI x 36 kinds
Metric threads: 0.8 ~ 14 mm x 33 kinds
CARRIAGE
Cross slide travel: 23"
Compound slide travel: 10"
TAILSTOCK
Tailstock taper center: M.T. #6
Tailstock quill travel: 9"
POWER
Main motor: 30 HP 3 Phase
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 138"x71"x83" 158"x71"x83" 197"x71"x83" 237"x71"x83" 276"x71"x83" 315"x71"x83"
Gross weight: 13,010 lb. 14,110 lb. 15,650 lb. 17,420 lb. 19,180 lb. 19,840 lb.

* Design and specifications are subject to change without notice.
