3660RS / 3680RS / 36120RS / 36160RS / 36200RS / 36240RS


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

Victor 3600RS series lathe is designed to provide outstanding performance and structural rigidity with a 4-1/8" spindle bore and 20 HP main motor.

FEATURES:

  • 4-1/8" spindle bore with D1-11 camlock spindle nose
  • The precision ground spindle is supported at three points by high-precision bearings
  • Heavily ribbed wide bed with induction hardened and precision ground bed ways for rigidity and low vibration

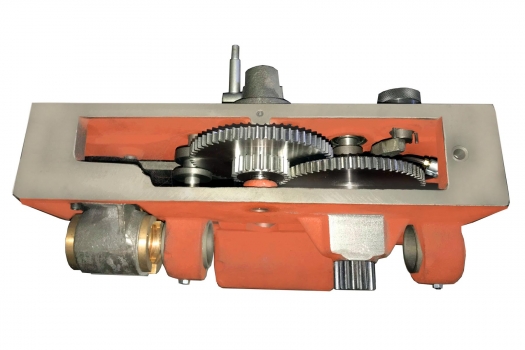

  • Hardened and precision ground alloy steel gears and shafts
  • Universal gearbox for inch, metric, D.P., and module threading without changing gears
  • Automatic and manual dual-mode lubrication system for slideways
  • Adjustable safety overload device
  • The tailstock quill is equipped with 4:1 reduction gearing ratio to provide easy drilling operation
  • Two-way longitudinal power rapid traverse on the model with 120" between centers or longer
  • Automatic stopper for longitudinal feeds
  • 20 HP main motor

See 3200RS Series Lathe (32" swing over the bed)


STANDARD ACCESSORIES:

  • Center sleeve
  • Dead center M.T. #5
  • Threading dial indicator
  • Coolant system
  • Leveling screws and pads
  • Tailstock with two-speed quill
  • Removable gap
  • Two-way power rapid traverse on model with 120" between centers or longer
  • Manual and parts list

MACHINE INCLUDES:

  1. Steady rest with rollers
  2. 4-way tool post
  3. Halogen work light
  4. Chuck cover with limit switch
MACHINE
Model(s): 3660RS 3680RS 36120RS 36160RS 36200RS 36240RS
Type: Precision Heavy-Duty Lathe
CAPACITY
Swing over bed: 36"
Swing over cross slide: 27.50"
Swing over gap: 48"
Bed width: 18-1/8"
Distance between centers: 59.06" 78.74" 118.11" 157.48" 196.85" 236.22"
HEADSTOCK
Spindle bore diameter: 4.13" (6.02" Opt.)
Taper of center in sleeve: M.T. #5
Spindle nose: D1-11 (Opt. 6.02" bore is A2-11)
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 15 ~ 1,000 rpm
Speed selections:
THREADS & FEEDS
Range of longitudinal feeds: 0.0020" ~ 0.0276"/rev.
Range of cross feeds: 0.0010" ~ 0.0138"/rev.
Inch threads: 2 ~ 28 TPI x 36 kinds
Metric threads: 0.8 ~ 14 mm x 38 kinds
CARRIAGE
Cross slide travel: 16-1/2"
Compound slide travel: 10"
TAILSTOCK
Tailstock taper center: M.T. #5
Tailstock quill travel: 9"
POWER
Main motor: 20 HP 3 Phase
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 136"x52"x71" 156"x52"x71" 197"x52"x71" 237"x52"x71" 276"x52"x71" 315"x52"x71"
Gross weight: 7,500 lb. 8,160 lb. 9,700 lb. 11,020 lb. 12,350 lb. 13,670 lb.



Click to download brochure in PDF
