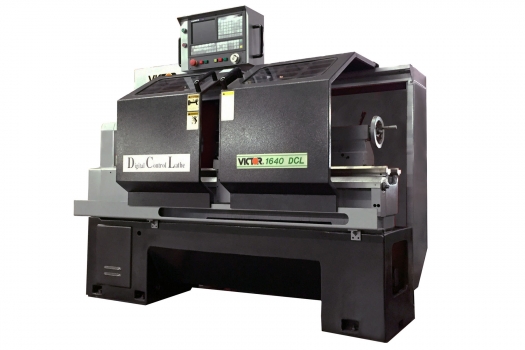

1640DCL ($28,950)


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

PRICE $28,950 NEW

An economical CNC flatbed lathe with full CNC G-code, M-code, T-code, and S-code functions.  Graphic conversational Machining programming and on screen tool path graphics provide flexibility to create programs.

FEATURES:

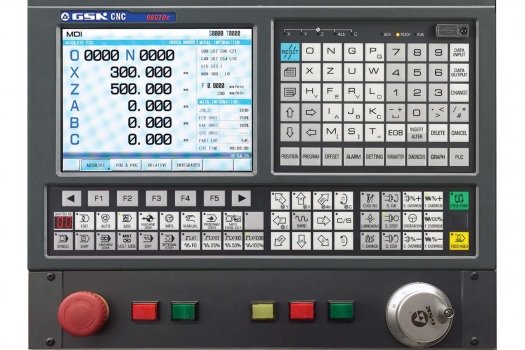

  • GSK 980 TDc ultra-compact CNC integrated with 8.4" LCD display and full function keyboard
  • GSK GS2000 AC Servo System with high resolutions absolute encoders
  • USB interface supports file operation in flash disk, system configuration and software
  • Simultaneous 2-axis linear and circular interpolation
  • G70 - G76 canned cycle functions
  • Graph programming assistance, grammar inspection, 2D tool display, and graphic review
  • 6 CNC operation modes: MEM, EDIT, MDI, Mchn Gdnce, Man/Hndwl, and Ref Return
  • 5 auxiliary CNC modes: Dry Run, Single Block, Optional Blk Skip, Manual Hand Wheel Interrupt, and Auxiliary Function Lock
  • Constant surface speed (CSS) control for manual and automatic operations
  • High precision ballscrew to ensure backlash-free transmission
  • Hardened and precision ground bedways
  • Auto lubrication system
  • Built-in coolant system
  • Hardware overtravel limit switch for all travel directions and tailstock to prevent accidental crash

STANDARD ACCESSORIES:

  • Dual sliding doors with full rear enclosure
  • Auto lubrication system
  • Ball screw pitch error compensation
  • Constant surface speed (CSS)
  • Built-in coolant system
  • High visibility fluorescent work light
  • Run-time / Parts counter
  • Tool nose radius compensation
  • Quick change tool post set - 3/4" tool shank
MACHINE
Model: 1640DCL
Type: Digital Control Lathe
CAPACITY
Swing over bed: 16.1"
Swing over cross slide: 8.6"
Bed width: 10.75"
Distance between centers: 40"
Tool post shank: 3/4" x 3/4"
SPINDLE (INFINITELY VARIABLE VECTOR SPINDLE CONTROL)
Spindle bore diameter: 2.05"
Spindle bore taper: M.T. #4
Spindle nose: D1-6
Spindle speeds (Gear 1): 40 ~ 360 rpm
Spindle speeds (Gear 2): 280 ~ 2,400 rpm
CNC CONTROL
CNC controller: GSK 980TDc
Number of electronic handwheels: 1 Handwheel (X and Z)
SERVO MOTOR SYSTEM
Servo motor: GSK A/C brushless servo motor
Amplifier system: GSK digital servo amplifier drives
Servo motor torque (X / Z axis): 51.4 in-lb. / 51.4 in-lb.
TRAVELS & RAPIDS
Cross slide travel (X-axis): 7"
Longitudinal travel (Z-axis): 35.2"
Rapid traverse (X / Z axis): 200 ipm / 300 ipm
TAILSTOCK
Tailstock taper center: M.T. #4
Tailstock quill diameter: 2.05"
Tailstock quill travel: 4.72"
POWER
Spindle motor: AC 7.5 HP
Voltage: 220V / 3 Phase
ACCURACY
Positioning (inch): 0.0004"
Repeatability (inch): 0.0002"
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 98" x 73" x 85"
Gross weight: 4,500 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



CNC Flat Bed Lathes





Accessories

STANDARD ACCESSORIES:

  • Dual sliding doors with full rear enclosure
  • Auto lubrication system
  • Ball screw pitch error compensation
  • Constant surface speed (CSS)
  • Built-in coolant system
  • High visibility fluorescent work light
  • Run-time / Parts counter
  • Tool nose radius compensation
  • Quick change tool post set - 3/4" tool shank

Specifications

MACHINE
Model: 1640DCL
Type: Digital Control Lathe
CAPACITY
Swing over bed: 16.1"
Swing over cross slide: 8.6"
Bed width: 10.75"
Distance between centers: 40"
Tool post shank: 3/4" x 3/4"
SPINDLE (INFINITELY VARIABLE VECTOR SPINDLE CONTROL)
Spindle bore diameter: 2.05"
Spindle bore taper: M.T. #4
Spindle nose: D1-6
Spindle speeds (Gear 1): 40 ~ 360 rpm
Spindle speeds (Gear 2): 280 ~ 2,400 rpm
CNC CONTROL
CNC controller: GSK 980TDc
Number of electronic handwheels: 1 Handwheel (X and Z)
SERVO MOTOR SYSTEM
Servo motor: GSK A/C brushless servo motor
Amplifier system: GSK digital servo amplifier drives
Servo motor torque (X / Z axis): 51.4 in-lb. / 51.4 in-lb.
TRAVELS & RAPIDS
Cross slide travel (X-axis): 7"
Longitudinal travel (Z-axis): 35.2"
Rapid traverse (X / Z axis): 200 ipm / 300 ipm
TAILSTOCK
Tailstock taper center: M.T. #4
Tailstock quill diameter: 2.05"
Tailstock quill travel: 4.72"
POWER
Spindle motor: AC 7.5 HP
Voltage: 220V / 3 Phase
ACCURACY
Positioning (inch): 0.0004"
Repeatability (inch): 0.0002"
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 98" x 73" x 85"
Gross weight: 4,500 lb.

* Design and specifications are subject to change without notice.
