618e Digital Threading Control Toolroom Lathe


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

High precision toolroom lathe with Digital Threading control is driven by a smooth 3 HP frequency controlled motor that runs virtually vibration free and extremely quite. Easy to use LCD touchscreen to simplify threading operations by selecting target TPI or mm pitch on the screen. DRO capabilities are built-in as standard. By eliminating traditional threading gearbox, Victor 618e toolroom lathe is easy to maintain, yet provides superior accuracy and performance.


  • Digital Threading operations are microprocessor controlled and carried out by synchronized spindle speed and servo motor driven leadscrew
  • LCD touchscreen to select thread pitch (TPI or mm) with no gears to change
  • DRO functions integrated into LCD panel features linear scales on X & Z axis
  • Infinitely variable spindle speeds from 50 ~ 4,000 rpm
  • The spindle is mounted in high precision preloaded angular contact ball bearings
  • Hardened and ground alloy tool steel bed ways
  • Full bearing carriage with Turcite-B slideway bearing material between carriage and bed
  • Fast lever collet chucking with a single movement
  • Independent infinitely variable feeds control on carriage and cross slide
  • Automatic thread length control with fine adjustable stops for accurate threading
  • Quick-action tool post slide for threading is instantly cleared from work
  • 5C lever type collet closer standard
  • 3 HP frequency controlled motor (inverter drive)

CNC Model

1118DCL Toolroom Lathe





Digital Threading LCD Panel


  • The leadscrew is driven directly by a servo motor. Through operation of interface, a spindle decoder is used to transfer the motion of leadscrew to rectilinear one.  The LCD touchscreen shows the data that is applied to the control panel.
  • Rapidly returning to the origin is executed according to the principle of temporarily coming off the tracking mode.
  • Feed rate per minute of auto feed is calculated with MODBUS communication protocol from interior message data of the converter, therefore it enhances greater cutting precision.

STANDARD ACCESSORIES:

  • LCD touchscreen with digital threading system
  • DRO functions integrated into LCD touchscreen
  • Variable frequency drive
  • 5C lever type collet closer
  • Tool holder
  • Drive plate
  • Drive gear
  • Drive dog
  • Test bar
  • Headstock center
  • Tailstock
  • Coolant system
  • Leveling screws and pads
  • Manual and parts list
OPTIONAL SPECIAL PACKAGE INCLUDES:

  1. 6" zero-set 3-jaw chuck with 4º taper back plate
  2. Halogen work light
  3. Chip and coolant shield (High impact resistance Lexan Polycarbonate resin)


OPTIONAL ACCESSORIES:

 Tool setting gage

5C collet fixture plate

 Chip and coolant shield

 Vertical cut-off slide

 Steady rest

 Follow rest

 Face plate

 Angle plate

 Taper attachment

 Radius turning attachment


6" zero-set 3-jaw scroll chuck with 4º taper back plate

6" 4-jaw independent chuck with 4º taper back plate

 Micro carriage stop with indicator

 4-position indexable tool post

 Rear tool holder slide assembly

 Step chuck and closer

 Threaded positive stops

Universal collet stop

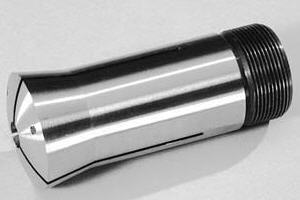

5C collet set

 Fixture plate

 5C headstock center

Drive plate

 Drive dog

 Expanding collet and pads

Knurling holder

 Turning & facing holder

 Drilling & boring bar holder

 6-station turret

 Bed length indicator

Live center

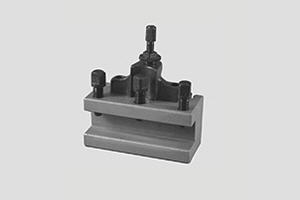

 Quick change tool post




OPTIONAL ACCESSORIES SETUP:

MACHINE
Model: 618e
Type: Digital Threading Control Toolroom Lathe
SPINDLE CAPACITY
With jaw chucks: 6"
With expanding collets: 3"
With round 5C collets: 1-1/16"
With hexagon 5C collets: 7/8"
With square 5C collets: 3/4"
With step chucks: 1-1/16" to 6"
Spindle nose diameter: 2.189"
Spindle nose I.D. / O.D.: 5C / 4º taper
Hole through spindle: 1-1/4"
Variable spindle speeds: 0 ~ 4,000 rpm (5C Collet) 0 ~ 3,000 rpm (6" 3-Jaw Chuck)
CAPACITY
Swing over carriage: 9"
Distance between center: 18"
Swing over cross slide: 6"
Swing over bed: 11"
THREADS, FEEDS & TRAVELS
Carriage power feed range: 5/16" ~ 7"
Cross slide power feed range: 3/16" ~ 4"
Cross slide travel: 6"
Quick-action compound slide travel: 0.1"
Compound slide travel: 3"
Inch threads: 3.175 ~ 500 TPI (digital threading system)
Metric threads: 0.55 ~ 6.55 mm (digital threading system)
TAILSTOCK
Tailstock spindle diameter: 1.358"
Tailstock spindle taper: M.T. #2
Tailstock spindle travel: 3-3/4"
POWER
Inverter spindle motor: 3 HP 220V 3PH
Coolant pump: 1/8 HP
Feed inverter motor: 1/2 HP
D.C. feed motor: 110V, 70W
WEIGHT & DIMENSIONS
Machine dimensions (LxWxH): 73"x30"x67"
Gross weight: 2,640 lb.



Click to download brochure in PDF
