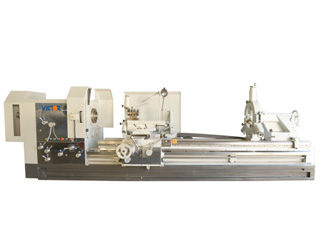

6060~60360PA PB PC Lathe


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

The massive construction heavy-duty oil country lathe engineered to deliver extremely powerful cutting capability and maximum stability. It comes standard with 6" large spindle bore and option up to 24". Between centers distance is up to 360" long. Easy to operate mechanical power feed and rapid travel for saddle, cross slide, and tool post.

FEATURES:

  • Heavy duty hollow spindle lathe, optional up to 24"spindle thru hole
  • Extra wide (28") hardened and precision ground bedways
  • Hardened and precision ground gears in headstock
  • Spindle is supported on 2 opposed directions by precision taper roller bearings at the front and rear
  • Massive heavy-duty headstock and machine base
  • Rigid one piece bed and base
  • 6-way power feed and rapid traverse
  • Safety overload device on apron
  • Universal inch/metric gearbox
  • Inch/metric threading without change gears
  • 40 HP main motor


STANDARD ACCESSORIES:

  • 4-way tool post
  • Thread chasing dial
  • Automatic lubrication system
  • 6-way power rapid traverse
  • Removable gap
  • Tailstock with duo speed quill
  • Coolant system
  • Chuck cover with limit switch
  • Dead center M.T. #6
  • Leveling screws and pads
  • Manual and parts list
MACHINE
Model(s): 6060 ~ 60360PA PB PC
Type: Heavy Duty Oil Country Lathe
CAPACITY
Swing over bed: 60.1"
Swing over cross slide: 47.3"
Swing over gap: 80.3"
Bed width: 28"
Distance between centers: 60" 80" 120" 160" 200" 240" 280" 320" 360"
HEADSTOCK
Spindle bore diameter: 6.02"(PA) / 9.05"(PB) / 12.51"(PC) & up to 24" or customize
Spindle bore taper: 1 : 20
Taper of center in sleeve: M.T. #5
Spindle nose: A2-11(PA) / A2-15(PB) / A2-20(PC)
Number of spindle speeds: 18 Steps (Std.) or Variable Speed 4 Steps w/ inverter (Opt.)
Range of spindle speeds (rpm): Steps 7~700 rpm (PA) / Steps or Var. 6~480 rpm (PB) / Var. 3~340 rpm (PC)
Speed selections: 7, 10, 13, 17, 22, 30, 45, 60, 75, 90, 105, 125, 190, 280, 355, 410, 540, 700 (6.02" PA)
THREADS & FEEDS
Range of longitudinal feeds: 0.0016"~0.096"/rev.
Range of cross feeds: 0.0008"~0.048"/rev.
Inch threads: 1/2 ~ 28 TPI x 60 kinds
Metric threads: 1 ~ 56 mm x 52 kinds
CARRIAGE
Cross slide travel: 31-1/2"
Compound slide travel: 15-3/4"
TAILSTOCK
Tailstock taper center: M.T. #6
Tailstock quill travel: 7-7/8"
POWER
Main motor: 40 HP
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 230"x85"x87" (based on 60120PA)
Gross weight: 33,020 lb. (based on 60120PA)



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Big Bore Lathes (6" and up)





Accessories

STANDARD ACCESSORIES:

  • 4-way tool post
  • Thread chasing dial
  • Automatic lubrication system
  • 6-way power rapid traverse
  • Removable gap
  • Tailstock with duo speed quill
  • Coolant system
  • Chuck cover with limit switch
  • Dead center M.T. #6
  • Leveling screws and pads
  • Manual and parts list

Specifications

MACHINE
Model(s): 6060 ~ 60360PA PB PC
Type: Heavy Duty Oil Country Lathe
CAPACITY
Swing over bed: 60.1"
Swing over cross slide: 47.3"
Swing over gap: 80.3"
Bed width: 28"
Distance between centers: 60" 80" 120" 160" 200" 240" 280" 320" 360"
HEADSTOCK
Spindle bore diameter: 6.02"(PA) / 9.05"(PB) / 12.51"(PC) & up to 24" or customize
Spindle bore taper: 1 : 20
Taper of center in sleeve: M.T. #5
Spindle nose: A2-11(PA) / A2-15(PB) / A2-20(PC)
Number of spindle speeds: 18 Steps (Std.) or Variable Speed 4 Steps w/ inverter (Opt.)
Range of spindle speeds (rpm): Steps 7~700 rpm (PA) / Steps or Var. 6~480 rpm (PB) / Var. 3~340 rpm (PC)
Speed selections: 7, 10, 13, 17, 22, 30, 45, 60, 75, 90, 105, 125, 190, 280, 355, 410, 540, 700 (6.02" PA)
THREADS & FEEDS
Range of longitudinal feeds: 0.0016"~0.096"/rev.
Range of cross feeds: 0.0008"~0.048"/rev.
Inch threads: 1/2 ~ 28 TPI x 60 kinds
Metric threads: 1 ~ 56 mm x 52 kinds
CARRIAGE
Cross slide travel: 31-1/2"
Compound slide travel: 15-3/4"
TAILSTOCK
Tailstock taper center: M.T. #6
Tailstock quill travel: 7-7/8"
POWER
Main motor: 40 HP
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 230"x85"x87" (based on 60120PA)
Gross weight: 33,020 lb. (based on 60120PA)

* Design and specifications are subject to change without notice.
