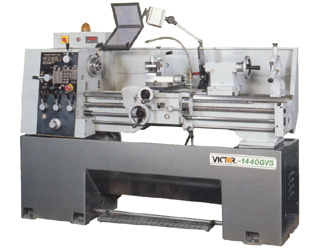

1440GVS Variable Speed Lathe


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

High-speed precision variable speed lathe combines with rigid one-piece cast iron base design and Meehanite casting bed to provide outstanding machining performance.

FEATURES:

  • 2-step infinitely variable speeds (Inverter driven)
  • Headstock gears are made of CR-MO alloy steel
  • Hardened and ground spindles and gears in headstock
  • Hardened and ground bedways
  • Telescopic cross slide
  • Cross slide ways are ground
  • Dual inch/metric gearbox
  • Oil bath lubrication for headstock, gearbox, and apron
  • Jog button for easy spindle speed changes
  • Full length foot brake
  • 3 HP frequency controlled motor

Non-Variable Speed Model
1440G Lathe


STANDARD ACCESSORIES:

  • Variable frequency drive
  • Removable gap
  • Tailstock
  • Chuck cover with limit switch
  • Coolant system
  • Full length foot brake
  • Dead center M.T. #3
  • Center sleeve
  • Change gears
  • Threading dial indicator
  • Leveling screws and pads
  • Manual and parts list

MACHINE INCLUDES:

  1. 6" 3-jaw chuck
  2. 8" 4-jaw chuck
  3. Steady rest with brass tips
  4. Follow rest
  5. 4-way tool post
  6. Face plate
  7. Full length splash guard
  8. Halogen work light
  9. Chuck cover with limit switch
MACHINE
Model(s): 1440GVS
Type: Precision Electronic Variable High Speed Lathe
CAPACITY
Swing over bed: 14"
Swing over cross slide: 9"
Swing over gap: 21"
Bed width: 10"
Distance between centers: 39.4"
HEADSTOCK
Spindle bore diameter: 1.60"
Spindle bore taper: M.T. #5
Taper of center in sleeve: M.T. #3
Spindle nose: D1-4
Number of spindle speeds: Variable - 2 steps (Inverter control)
Range of spindle speeds (rpm): Low gear: 30 ~ 360 rpm High gear: 160 ~ 2,500 rpm
Speed selections: Infinitely Variable
THREADS & FEEDS
Range of longitudinal feeds: 0.002" ~ 0.04"/rev.
Range of cross feeds: 0.001" ~ 0.02"/rev.
Inch threads: 4 ~ 112 TPI x 40 kinds
Metric threads: 0.25 ~ 6.0 mm x 22 kinds
CARRIAGE
Cross slide travel: 8-1/16"
Compound slide travel: 3-3/4"
TAILSTOCK
Tailstock taper center: M.T. #3
Tailstock quill travel: 4-1/4"
POWER
Main motor: 3 HP 3 Phase (inverter drive)
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 78"x30"x60"
Gross weight: 2,794 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Engine Lathes





Accessories

STANDARD ACCESSORIES:

  • Variable frequency drive
  • Removable gap
  • Tailstock
  • Chuck cover with limit switch
  • Coolant system
  • Full length foot brake
  • Dead center M.T. #3
  • Center sleeve
  • Change gears
  • Threading dial indicator
  • Leveling screws and pads
  • Manual and parts list

MACHINE INCLUDES:

  1. 6" 3-jaw chuck
  2. 8" 4-jaw chuck
  3. Steady rest with brass tips
  4. Follow rest
  5. 4-way tool post
  6. Face plate
  7. Full length splash guard
  8. Halogen work light
  9. Chuck cover with limit switch

Specifications

MACHINE
Model(s): 1440GVS
Type: Precision Electronic Variable High Speed Lathe
CAPACITY
Swing over bed: 14"
Swing over cross slide: 9"
Swing over gap: 21"
Bed width: 10"
Distance between centers: 39.4"
HEADSTOCK
Spindle bore diameter: 1.60"
Spindle bore taper: M.T. #5
Taper of center in sleeve: M.T. #3
Spindle nose: D1-4
Number of spindle speeds: Variable - 2 steps (Inverter control)
Range of spindle speeds (rpm): Low gear: 30 ~ 360 rpm High gear: 160 ~ 2,500 rpm
Speed selections: Infinitely Variable
THREADS & FEEDS
Range of longitudinal feeds: 0.002" ~ 0.04"/rev.
Range of cross feeds: 0.001" ~ 0.02"/rev.
Inch threads: 4 ~ 112 TPI x 40 kinds
Metric threads: 0.25 ~ 6.0 mm x 22 kinds
CARRIAGE
Cross slide travel: 8-1/16"
Compound slide travel: 3-3/4"
TAILSTOCK
Tailstock taper center: M.T. #3
Tailstock quill travel: 4-1/4"
POWER
Main motor: 3 HP 3 Phase (inverter drive)
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 78"x30"x60"
Gross weight: 2,794 lb.

* Design and specifications are subject to change without notice.
