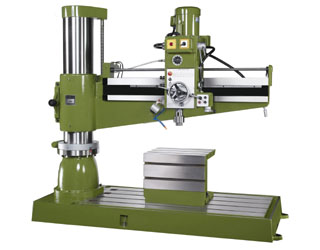

1363H Radial Drill
Machine may be shown with optional accessories.
FEATURES:
- The hydraulic clamping system of column, arm, and head controlled by a push-button switch
- Power elevating motor arm with an anti-fall safety device
- Hardened and precision ground arm ways
- The arm is made of high quality cast iron through the heat treatment process and precision grinding
- The spindle is counterbalanced by means of an adjustable block
- Limit safety device for operation
- Built-in coolant system
- Work light
- 5 HP 2-speed spindle motor
Accessories
STANDARD ACCESSORIES:
- Plain box table
- Work light
- Coolant system
OPTIONAL ACCESSORIES:
- Tilt table 520 x 510 x 570 mm (20.47" x 20" x 22.44")
- Tilt table 810 x 710 x 610 mm (31.89" x 27.95" x 24")
Specifications
| MACHINE | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model: | 1363H | ||||||||
| Type: | Radial Drill | ||||||||
| CAPACITY | |||||||||
| Diameter of column: | 12.60" | ||||||||
| Max. distance column to spindle center: | 62.99" | ||||||||
| Min. distance column to spindle center: | 13.78" | ||||||||
| Travel of spindle head: | 49.21" | ||||||||
| Max. distance base surface to spindle end: | 55.71" | ||||||||
| Min. distance base surface to spindle end: | 18.31" | ||||||||
| Elevating height of arm: | 26.77" | ||||||||
| Effective area of box table: | 24.80" x 19.69" x 19.69" | ||||||||
| Dimensions of base: | 93.11" x 38.19" x 7.87" | ||||||||
| Drill capacity (steel): | 1.97" | ||||||||
| Drill capacity (cast iron): | 2.36" | ||||||||
| Tapping capacity (steel): | 1.57" | ||||||||
| Tapping capacity (cast iron): | 1.97" | ||||||||
| SPINDLE | |||||||||
| Spindle taper: | M.T. #5 | ||||||||
| Spindle travel: | 10.63" | ||||||||
| Spindle speeds (rpm x steps): | 56 ~ 1,450 rpm x 12 steps | ||||||||
| Spindle feeds (rev. x steps): | 0.0024", 0.0039", 0.0079" x 3 steps | ||||||||
| POWER | |||||||||
| Main motor: | 5 HP 3 Phase (2-speed motor) | ||||||||
| Elevating motor: | 2 HP | ||||||||
| Clamping motor: | 1 HP hydraulic | ||||||||
| Coolant pump motor: | 1/8 HP | ||||||||
| WEIGHT & DIMENSIONS | |||||||||
| Machine height from floor: | 108.66" | ||||||||
| Shipping dimensions (LxWxH): | 106" x 45" x 95" | ||||||||
| Net weight: | 7,275 lb. | ||||||||
| Gross weight: | 8,380 lb. | ||||||||
* Design and specifications are subject to change without notice.
Machine may be shown with optional accessories
