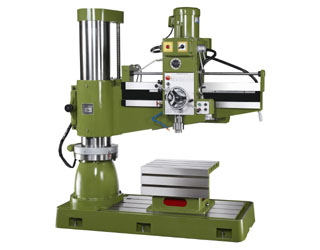

1249H Radial Drill


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

FEATURES:

  • The hydraulic clamping system of column, arm, and head controlled by a push-button switch
  • Power elevating motor arm with an anti-fall safety device
  • Hardened and precision ground arm ways
  • The arm is made of high quality cast iron through the heat treatment process and precision grinding
  • The spindle is counterbalanced by means of an adjustable block
  • Limit safety device for operation
  • Built-in coolant system
  • Work light
  • 5 HP 2-speed spindle motor


STANDARD ACCESSORIES:

  • Plain box table
  • Work light
  • Coolant system

OPTIONAL ACCESSORIES:

  1. Tilt table 520 x 510 x 570 mm (20.47" x 20" x 22.44")
  2. Tilt table 810 x 710 x 610 mm (31.89" x 27.95" x 24")

MACHINE
Model: 1249H
Type: Radial Drill
CAPACITY
Diameter of column: 11.81"
Max. distance column to spindle center: 49.21"
Min. distance column to spindle center: 14.17"
Travel of spindle head: 35.04"
Max. distance base surface to spindle end: 52.95"
Min. distance base surface to spindle end: 17.32"
Elevating height of arm: 24.41"
Effective area of box table: 25" x 20.47" x 16.54"
Dimensions of base: 70.28" x 30.91" x 7.48"
Drill capacity (steel): 1.97"
Drill capacity (cast iron): 2.36"
Tapping capacity (steel): 1.57"
Tapping capacity (cast iron): 1.97"
SPINDLE
Spindle taper: M.T. #5
Spindle travel: 10.63"
Spindle speeds (rpm x steps): 56 ~ 1,450 rpm x 12 steps
Spindle feeds (rev. x steps): 0.0024", 0.0039", 0.0079" x 3 steps
POWER
Main motor: 5 HP 3 Phase (2-speed motor)
Elevating motor: 1 HP
Clamping motor: 1 HP hydraulic
Coolant pump motor: 1/8 HP
WEIGHT & DIMENSIONS
Machine height from floor: 104.13"
Shipping dimensions (LxWxH): 82" x 40" x 89"
Net weight: 5,070 lb.
Gross weight: 5,510 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Radial Drills





Accessories

STANDARD ACCESSORIES:

  • Plain box table
  • Work light
  • Coolant system

OPTIONAL ACCESSORIES:

  1. Tilt table 520 x 510 x 570 mm (20.47" x 20" x 22.44")
  2. Tilt table 810 x 710 x 610 mm (31.89" x 27.95" x 24")

Specifications

MACHINE
Model: 1249H
Type: Radial Drill
CAPACITY
Diameter of column: 11.81"
Max. distance column to spindle center: 49.21"
Min. distance column to spindle center: 14.17"
Travel of spindle head: 35.04"
Max. distance base surface to spindle end: 52.95"
Min. distance base surface to spindle end: 17.32"
Elevating height of arm: 24.41"
Effective area of box table: 25" x 20.47" x 16.54"
Dimensions of base: 70.28" x 30.91" x 7.48"
Drill capacity (steel): 1.97"
Drill capacity (cast iron): 2.36"
Tapping capacity (steel): 1.57"
Tapping capacity (cast iron): 1.97"
SPINDLE
Spindle taper: M.T. #5
Spindle travel: 10.63"
Spindle speeds (rpm x steps): 56 ~ 1,450 rpm x 12 steps
Spindle feeds (rev. x steps): 0.0024", 0.0039", 0.0079" x 3 steps
POWER
Main motor: 5 HP 3 Phase (2-speed motor)
Elevating motor: 1 HP
Clamping motor: 1 HP hydraulic
Coolant pump motor: 1/8 HP
WEIGHT & DIMENSIONS
Machine height from floor: 104.13"
Shipping dimensions (LxWxH): 82" x 40" x 89"
Net weight: 5,070 lb.
Gross weight: 5,510 lb.

* Design and specifications are subject to change without notice.
