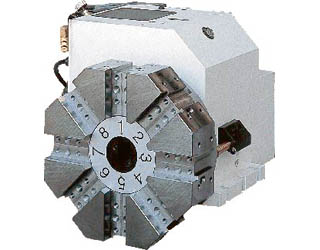

Hydraulic Vertical 8-position CNC Turret


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

FEATURES:

  • Robust and reliable hydraulic vertical 8-position CNC turret with superior accuracy, durability, and stability
  • Turret is equipped with "double-cam plate" for indexing mechanism and smooth high speed tool-disc turning which is suitable for precision heavy-duty cutting
  • Hydraulic operation on tool-disc turning, indexing, clamping, and unclamping
  • No error on tool-disc change with smart selection of nearby tools, controlled via proximity detector and PLC programming
Note: The max O.D. over cross slide will be smaller when hydraulic vertical 8-position turret is installed.


HYDRAULIC VERTICAL 8-POSITION CNC TURRET
Tool capacity: 0.75" 1.00" 1.25" 1.50"
Swing over bed up to (suggested): 18" 18" ~ 30" 35" ~ 70" 35" ~ 70"



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



CNC PRODUCTS





Accessories

Specifications

HYDRAULIC VERTICAL 8-POSITION CNC TURRET
Tool capacity: 0.75" 1.00" 1.25" 1.50"
Swing over bed up to (suggested): 18" 18" ~ 30" 35" ~ 70" 35" ~ 70"

* Design and specifications are subject to change without notice.
