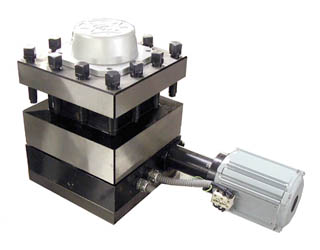

Horizontal 4-position CNC Turret


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

  • All electric horizontal 4-position CNC turret
  • Change tools quickly and easily via CNC control
  • For jobs that require frequent tool changes
  • Ideal for large swing lathe where tool changes are very cumbersome and time consuming
  • Waterproof solid state electromagnetic position sensors are encased in a sealed plastic housing
  • No lift turret rotation. This prevent chips and coolant from entering the inside
  • Precisely machined 3-piece hirth coupling insures rigidity and repeatability of the turret


HORIZONTAL 4-POSITION CNC TURRET
Model: Star-V25 Star V-40 Star V-50 Star-V60
Tool capacity: 1.0" 1.0" 1.25" 1.25"
Turret size (square): 6.0" x 6.0" 6.5" x 6.5" 7.9" x 7.9" 9.4" x 9.4"
Base size: 6.73" x 6.34" 7.56" x 7.56" 7.87" x 7.87" 9.45" x 9.45"



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



CNC Turrets





Features

Accessories

Specifications

HORIZONTAL 4-POSITION CNC TURRET
Model: Star-V25 Star V-40 Star V-50 Star-V60
Tool capacity: 1.0" 1.0" 1.25" 1.25"
Turret size (square): 6.0" x 6.0" 6.5" x 6.5" 7.9" x 7.9" 9.4" x 9.4"
Base size: 6.73" x 6.34" 7.56" x 7.56" 7.87" x 7.87" 9.45" x 9.45"

* Design and specifications are subject to change without notice.
