6060DCL~60360DCL (Discontinued)


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

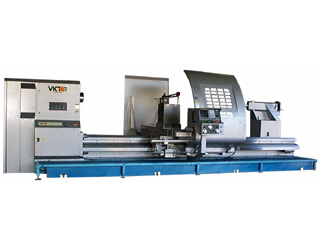

A powerful multi-function full CNC flatbed lathe, yet easy to use Teach-in / Playback feature allows duplicating extra identical parts in no time after initial part is machined. A user-friendly and versatile Graphic Conversational Machine Guidance provides flexibility to create programs without knowledge of G-code programming. DCL is as simple to operate as a manual lathe via convenience of electronic handwheels.

FEATURES:

  • Heavy duty hollow spindle CNC flatbed lathe, optional up to 24" spindle thru hole
  • Extra wide (28") hardened and precision ground bedways
  • Fanuc 20-TA CNC control system
  • Fanuc industry standard G-codes
  • CNC assisted manual machining
  • Teach-in / playback operation
  • Graphics conversational programming
  • Full CNC automatic operation
  • Tool radius and geometry operation
  • CNC controlled spindle
  • Constant surface speed (vector control)
  • Triple (3) electronic handwheels
  • Four (4) ranges of variable speeds with automatic gear change
  • Designed primarily for heavy duty turning operations with dramatic productivity
  • Massive high tensile Meehanite cast iron bed assures superior accuracy and rigidity for long lasting trouble-free operation
  • High precision spindle made from high quality alloy steel that is supported by large angular contact roller bearings to resist radial and axial load during heavy duty machining
  • High precision ballscrew to ensure backlash free transmission
  • Bed slideways are hardened, precision ground, and coated with Turcite-B for wear resistance
  • Forced lubrication of headstock gears
  • Auto lubrication system on all slideways and ballscrews
  • Built-in coolant system
  • Hardware overtravel limit switch for all travel directions and tailstock to prevent accidental crash
  • Powerful 40 HP high torque spindle motor for heavy duty machining

STANDARD FEATURES AND ACCESSORIES:

  1. Automatic lubrication system
  2. Triple (3) electronic handwheels
  3. 1-handwheel "run verify" function
  4. High visibility fluorescent work light
  5. Built-in coolant system
  6. Constant surface speed
  7. Run-time / parts counter
  8. Tool nose radius and ballscrew pitch error compensation
  9. Aloris super precision tool post, EA series (1-1/2" tool shank)


MACHINE
Model: 6060DCL ~ 60360DCL
Type: Digital Control Lathe
CAPACITY
Swing over bed: 60.1"
Swing over cross slide: 43.3"
Swing over gap: 80"
Bed width: 28"
Distance between centers: 60" 80" 120" 160" 200" 240" 280" 320" 360"
Tool post shank: 1.50" x 1.50"
SPINDLE (INFINITELY VARIABLE VECTOR SPINDLE CONTROL)
Spindle bore diameter: 6" (standard) / 9" / 12.5" & up to 24" or customize
Spindle bore taper: 1 : 20
Spindle nose: 6": A2-11 (standard) / 9": A2-15 (optional) / 12.5": A2-20 (optional)
Spindle speeds (Gear 1): 3 ~ 40 rpm (6") / 2 ~ 30 rpm (9") / 2 ~ 27 rpm (12.5")
Spindle speeds (Gear 2): 40 ~ 80 rpm (6") / 30 ~ 63 rpm (9") / 27 ~ 55 rpm (12.5")
Spindle speeds (Gear 3): 80 ~ 220 rpm (6") / 63 ~ 148 rpm (9") / 55 ~ 123 rpm (12.5")
Spindle speeds (Gear 4): 220 ~ 450 rpm (6") / 148 ~ 305 rpm (9") / 123 ~ 254 rpm (12.5")
CNC CONTROL
CNC controller: Fanuc 20-TA
Number of electronic handwheels: 3 Handwheels (X, Z & Programmable)
SERVO MOTOR SYSTEM
Servo motor: FANUC A/C brushless servo motor
Amplifier system: FANUC digital servo amplifier drives
Servo motor torque (X / Z axis): 102.8 in-lb. / 188.5 in-lb.
TRAVELS & RAPIDS
Cross slide travel (X-axis): 31.5"
Longitudinal travel (Z-axis): 60" 80" 120" 160" 200" 240" 280" 320" 360"
Rapid traverse (X / Z axis): 225 ipm / 300 ipm
TAILSTOCK
Tailstock taper center: M.T. #6
Tailstock quill diameter: 4.5"
Tailstock quill travel: 7.87"
POWER
Spindle motor: AC 40 HP
Voltage: 220V / 3 Phase
ACCURACY
Positioning (inch): 0.0004"
Repeatability (inch): 0.0002"
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): N/A
Gross weight: N/A



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



CNC PRODUCTS





Accessories

Specifications

MACHINE
Model: 6060DCL ~ 60360DCL
Type: Digital Control Lathe
CAPACITY
Swing over bed: 60.1"
Swing over cross slide: 43.3"
Swing over gap: 80"
Bed width: 28"
Distance between centers: 60" 80" 120" 160" 200" 240" 280" 320" 360"
Tool post shank: 1.50" x 1.50"
SPINDLE (INFINITELY VARIABLE VECTOR SPINDLE CONTROL)
Spindle bore diameter: 6" (standard) / 9" / 12.5" & up to 24" or customize
Spindle bore taper: 1 : 20
Spindle nose: 6": A2-11 (standard) / 9": A2-15 (optional) / 12.5": A2-20 (optional)
Spindle speeds (Gear 1): 3 ~ 40 rpm (6") / 2 ~ 30 rpm (9") / 2 ~ 27 rpm (12.5")
Spindle speeds (Gear 2): 40 ~ 80 rpm (6") / 30 ~ 63 rpm (9") / 27 ~ 55 rpm (12.5")
Spindle speeds (Gear 3): 80 ~ 220 rpm (6") / 63 ~ 148 rpm (9") / 55 ~ 123 rpm (12.5")
Spindle speeds (Gear 4): 220 ~ 450 rpm (6") / 148 ~ 305 rpm (9") / 123 ~ 254 rpm (12.5")
CNC CONTROL
CNC controller: Fanuc 20-TA
Number of electronic handwheels: 3 Handwheels (X, Z & Programmable)
SERVO MOTOR SYSTEM
Servo motor: FANUC A/C brushless servo motor
Amplifier system: FANUC digital servo amplifier drives
Servo motor torque (X / Z axis): 102.8 in-lb. / 188.5 in-lb.
TRAVELS & RAPIDS
Cross slide travel (X-axis): 31.5"
Longitudinal travel (Z-axis): 60" 80" 120" 160" 200" 240" 280" 320" 360"
Rapid traverse (X / Z axis): 225 ipm / 300 ipm
TAILSTOCK
Tailstock taper center: M.T. #6
Tailstock quill diameter: 4.5"
Tailstock quill travel: 7.87"
POWER
Spindle motor: AC 40 HP
Voltage: 220V / 3 Phase
ACCURACY
Positioning (inch): 0.0004"
Repeatability (inch): 0.0002"
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): N/A
Gross weight: N/A

* Design and specifications are subject to change without notice.
