3060DCL / 3080DCL / 30120DCL

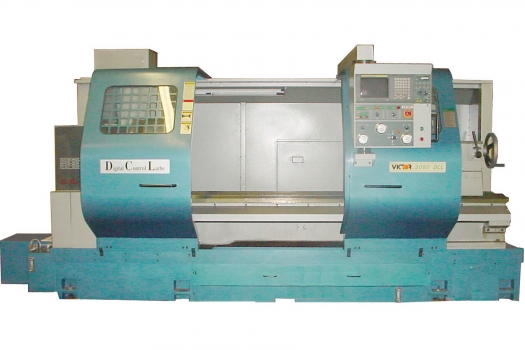

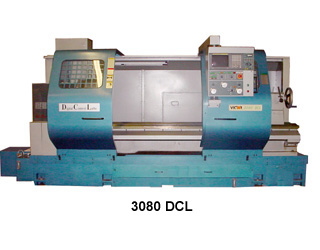

Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

A powerful multi-function full CNC flatbed lathe, yet easy to use Teach-in / Playback feature allows duplicating extra identical parts in no time after initial part is machined. A user-friendly and versatile Graphic Conversational Machining Guidance provides flexibility to create programs without knowledge of G-code programming. DCL is as simple to operate as a manual lathe via convenience of electronic handwheels.

FEATURES:

  • Fanuc 20i-TB CNC control system
  • Fanuc AC Digital Servo System with high resolution absolute encoders
  • Built-in flash memory slot for file transfer and data storage
  • Fanuc industry standard G-codes
  • CNC assisted manual machining
  • Teach-in / playback operation
  • Graphics conversational programming
  • Full CNC automatic operation
  • Tool radius and geometry operation
  • CNC controlled spindle
  • Constant surface speed (vector control)
  • Triple (3) electronic handwheels
  • Main casting pieces are by massive Meehanite castings for superior dampening and rigidity
  • Headstock gears are made from Chromium Molybdenum steel (SCM21), hardened by carbonization, and precisely ground to provide smooth and quiet running
  • Forced lubrication of headstock gears
  • Spindle is supported by 3 precision bearings to insure accuracy and rigidity during heavy cutting
  • High precision ballscrew to ensure backlash-free transmission
  • Hardened and precision ground bedways
  • Ribbed bed constructed from an annealed processed casting insures no deformation occurs on the slideways
  • Turcite B coating on slideways to provide wear resistance
  • Auto lubrication system on all slideways and ballscrews
  • Front chip tray with pull out handles
  • Built-in coolant system
  • Hardware overtravel limit switch for all travel directions and tailstock to prevent accidental crash
  • CNC control mounted on swivel arm while control panel mounted on apron for easy access and viewing. 80" between centers or longer has CNC control and control panel conveniently mounted on right sliding door
  • Dual speed tailstock quill provides easy drilling operation

STANDARD FEATURES AND ACCESSORIES:

  1. Rear enclosure with dual sliding doors
  2. Automatic lubrication system
  3. Triple (3) electronic handwheels
  4. 1-handwheel "run verify" function
  5. High visibility fluorescent work light
  6. Built-in coolant system
  7. Constant surface speed (CSS)
  8. Run-time / parts counter
  9. Tool nose radius and ballscrew pitch error compensation
  10. Aloris super precision tool post, DA series (1-1/4" tool shank)


MACHINE
Model: 3060DCL 3080DCL 30120DCL
Type: Digital Control Lathe
CAPACITY
Swing over bed: 30"
Swing over cross slide: 18.1"
Bed width: 18.9"
Distance between centers: 60" 80" 120"
Tool post shank: 1.25" x 1.25"
SPINDLE (INFINITELY VARIABLE VECTOR SPINDLE CONTROL)
Spindle bore diameter: 4.1"
Spindle bore taper: M.T. #7
Spindle nose: A2-11 (D1-11 optional)
Spindle speeds (Gear 1): 25 ~ 75 rpm
Spindle speeds (Gear 2): 76 ~ 165 rpm
Spindle speeds (Gear 3): 166 ~ 540 rpm
Spindle speeds (Gear 4): 541 ~ 1,200 rpm
CNC CONTROL
CNC controller: Fanuc 20i-TB
Number of electronic handwheels: 3 Handwheels (X, Z & Programmable)
SERVO MOTOR SYSTEM
Servo motor: FANUC A/C brushless servo motor
Amplifier system: FANUC digital servo amplifier drives
Servo motor torque (X / Z axis): 51.4 in-lb. / 102.8 in-lb.
TRAVELS & RAPIDS
Cross slide travel (X-axis): 15.7"
Longitudinal travel (Z-axis): 60" 80" 120"
Rapid traverse (X / Z axis): 200 ipm / 300 ipm
TAILSTOCK
Tailstock taper center: M.T. #5
Tailstock quill diameter: 4.1"
Tailstock quill travel: 6"
POWER
Spindle motor: AC 20 HP (25 HP optional)
Voltage: 220V / 3 Phase
ACCURACY
Positioning (inch): 0.0004"
Repeatability (inch): 0.0002"
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 157"x88"x87.4" 177"x88"x87.4" 217"x88"x87.4"
Gross weight: 11,200 lb. 12,300 lb. 14,500 lb.
