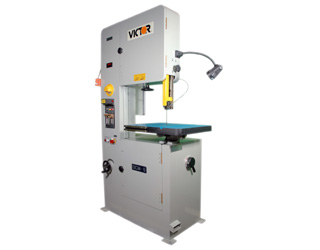

DCM-4TS Vertical Bandsaw


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

FEATURES:

  • Machine frame is completely enclosed steel construction. Sturdiness design guarantees highest efficiency and quiet operation
  • 4-way tilting heavy cast iron table with T-slot
  • 2-speed transmission is powered by enclosed gears running in continuous bath of oil with infinite vari-speed control unit
  • Convenient blade speed tachometer display
  • Easy quick adjustable blade guides firmly support blade
  • Upper / lower V-type saw guide with ground carbide inserts corresponding to blade size in use. Air nozzle blows off chips as in sawing

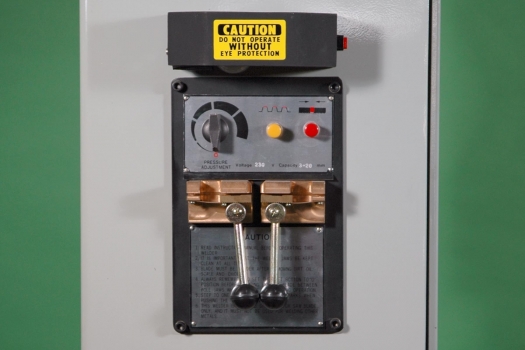

  • Butt welder and annealing unit provides easy welding work
  • Built-in work light


STANDARD ACCESSORIES:

  • Saw blade cutter
  • Saw blade welder
  • Saw blade grinder
  • LED blade speed display
  • Air nozzle
  • Halogen work light
  • Standard saw blade - 1 piece

OPTIONAL ACCESSORIES:
  1. Rip fence for straight cutting
  2. Miter protractor for angular cutting
MACHINE
Model: DCM-4TS
Type: Vertical Bandsaw (with T-slot Table)
CAPACITY
Throat capacity: 15.75"
Max. thickness: 11.00"
Table size: 23.50" x 19.50"
Table inclination (4-way): 15°
SAW BLADE
Speed: Low 65 ~ 280 fpm / High 400 ~ 1,640 fpm (98 ~ 2,300 fpm optional high speed)
Length: 132"
Width: 1/8" ~ 5/8"
BUTT WELDER
Butt welder capacity: 1/8" ~ 5/8"
POWER
Main motor: 2 HP 3 Phase
WEIGHT & DIMENSIONS
Dimensions (LxWxH): 47-5/16" x 29-13/16" x 82-13/16"
Net weight: 970 lb.
Gross weight: 1,234 lb.



Click to download brochure in PDF
