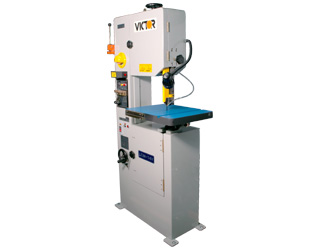

LCM-14VTS Vertical Bandsaw


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

FEATURES:

  • Machine frame is completely enclosed steel construction. Sturdiness design guarantees highest efficiency and quiet operation

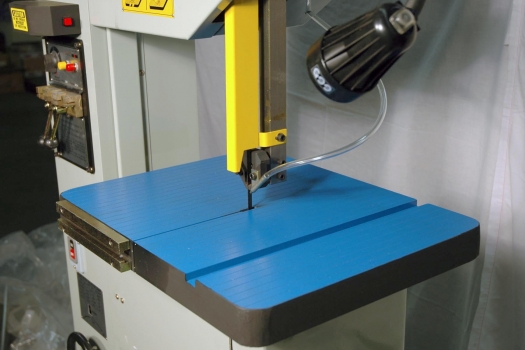

  • 4-way tilting heavy cast iron table with T-slot
  • Easy quick adjustable blade guides firmly support blade
  • Upper / lower V-type saw guide with ground carbide inserts corresponding to blade size in use. Air nozzle blows off chips as in sawing

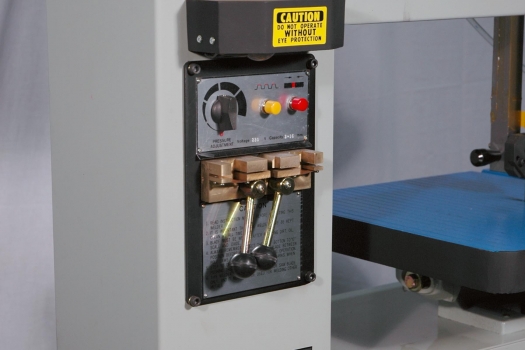

  • Butt welder and annealing unit provides easy welding work
  • Built-in work light


STANDARD ACCESSORIES:

  • Saw blade cutter
  • Saw blade welder
  • Saw blade grinder
  • Air nozzle
  • Halogen work light
  • Standard saw blade - 1 piece

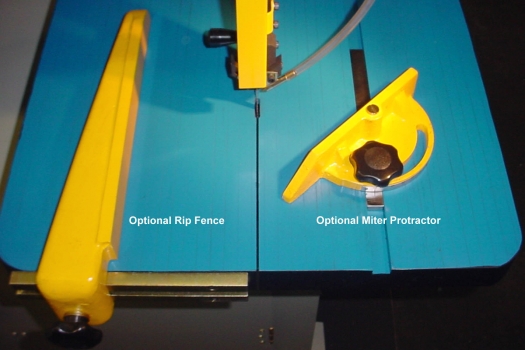

OPTIONAL ACCESSORIES:

  1. Rip fence for straight cutting
  2. Miter protractor for angular cutting
MACHINE
Model: LCM-14VTS
Type: Vertical Bandsaw (with T-slot Table)
CAPACITY
Throat capacity: 14"
Max. thickness: 9"
Table size: 19.50" x 15.25"
Table inclination (4-way): 15°
SAW BLADE
Speed: 65 ~ 295 fpm
Length: 111-13/16"
Width: 1/8" ~ 5/8"
BUTT WELDER
Butt welder capacity: 1/8" ~ 5/8"
POWER
Main motor: 1 HP 3 Phase
WEIGHT & DIMENSIONS
Dimensions (LxWxH): 37-3/16" x 22" x 72-13/16"
Net weight: 551 lb.
Gross weight: 683 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Vertical Bandsaws





Accessories

STANDARD ACCESSORIES:

  • Saw blade cutter
  • Saw blade welder
  • Saw blade grinder
  • Air nozzle
  • Halogen work light
  • Standard saw blade - 1 piece

OPTIONAL ACCESSORIES:

  1. Rip fence for straight cutting
  2. Miter protractor for angular cutting

Specifications

MACHINE
Model: LCM-14VTS
Type: Vertical Bandsaw (with T-slot Table)
CAPACITY
Throat capacity: 14"
Max. thickness: 9"
Table size: 19.50" x 15.25"
Table inclination (4-way): 15°
SAW BLADE
Speed: 65 ~ 295 fpm
Length: 111-13/16"
Width: 1/8" ~ 5/8"
BUTT WELDER
Butt welder capacity: 1/8" ~ 5/8"
POWER
Main motor: 1 HP 3 Phase
WEIGHT & DIMENSIONS
Dimensions (LxWxH): 37-3/16" x 22" x 72-13/16"
Net weight: 551 lb.
Gross weight: 683 lb.

* Design and specifications are subject to change without notice.
