Auto-15HS Auto Horizontal Bandsaw

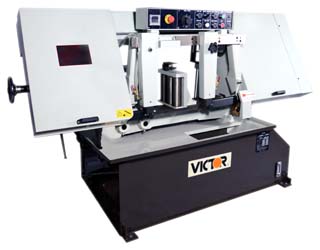

Machine may be shown with optional accessories.
FEATURES:
- Motorized roller feeding system
- Adjustable hydraulic feed rate provides an infinite range of cutting pressure
- Preset cut-piece counter with automatic stop
- Work height selector
- Out of stock switch with automatic stop
- Carbide guides for 1" wide blade
- Blade breakage detector with automatic stop
- Built-in coolant system distributed through blade guides
- Wire blade brush
- Built-in work light
Accessories
STANDARD ACCESSORIES:
- Roller table
- Adjustable material stop
- Coolant system
- Work light
- Carbide blade guides
- Standard saw blade - 1 piece
- Blade wire brush - 1 piece
- Toolbox
Specifications
| MACHINE | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model: | Auto-15HS | ||||||||
| Type: | Auto Horizontal Bandsaw | ||||||||
| CAPACITY | |||||||||
| Round capacity (90º): | 15" | ||||||||
| Rectangular (90º): | 6" x 16" (11" x 11" square) | ||||||||
| SAW BLADE | |||||||||
| Speed: | 47, 80, 95, 127, 158, 250 fpm | ||||||||
| Size: | 168" x 1" | ||||||||
| Tension: | Manual | ||||||||
| Guides: | Carbide guides | ||||||||
| Cleaning: | Wire brush & flood coolant | ||||||||
| POWER | |||||||||
| Blade motor: | 3 HP 3 Phase | ||||||||
| Hydraulic motor: | 1/4 HP | ||||||||
| Coolant pump motor: | 1/8 HP | ||||||||
| WORK FEEDING | |||||||||
| Work feeding type: | Motorized roller feeding | ||||||||
| VISE | |||||||||
| Vise type: | Manual | ||||||||
| WEIGHT & DIMENSIONS | |||||||||
| Dimensions (LxWxH): | 90" x 40" x 58" | ||||||||
| Gross weight: | 2,420 lb. | ||||||||
* Design and specifications are subject to change without notice.
Machine may be shown with optional accessories
