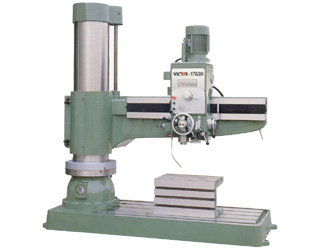

1763H Radial Drill


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

FEATURES:

  • Hydraulic clamping system of column, arm, and head independently controlled by push button switch. Vertical movement of arm is coordinated by an IC timer
  • Power elevating motor arm with anti-fall safety device
  • Cycling oil pump designed to cool off precision gears inside gearbox and minimize excessive wear and tear on gears to the lowest extent
  • Friction type disc clutch to absorb impact force caused by vertical movement of spindle and effectively protect all transmission units inside gearbox
  • Built-in clutch for quick spindle return to speed up tapping operation
  • Automatic tool ejector device to shift tools efficiently
  • Built-in work light
  • Built-in coolant system


STANDARD ACCESSORIES:

  • Plain box table
  • Work light
  • Coolant system

OPTIONAL ACCESSORIES:
  1. Tilt table 520 x 510 x 570 mm (20.47" x 20" x 22.44")
  2. Tilt table 810 x 710 x 610 mm (31.89" x 27.95" x 24")
MACHINE
Model: 1763H
Type: Radial Drill
CAPACITY
Diameter of column: 17"
Max. distance column to spindle center: 63"
Min. distance column to spindle center: 13.38"
Travel of spindle head: 49.63"
Max. distance base surface to spindle end: 63"
Min. distance base surface to spindle end: 13"
Elevating height of arm: 35.44"
Effective area of box table: 27-5/8" x 19-5/8" x 15-3/4"
Dimensions of base: 97-5/8" x 41-11/32" x 8-1/4"
Drill capacity (steel): 2.25"
Drill capacity (cast iron): 2.625"
Tapping capacity (steel): 2"
Tapping capacity (cast iron): 2.375"
Boring capacity (steel): 5"
Boring capacity (cast iron): 7.375"
SPINDLE
Spindle taper: M.T. #5
Spindle travel: 14-9/16"
Spindle speeds (rpm x steps): 40 ~ 1,920 rpm x 12 steps
Spindle feeds (rev. x steps): 0.0028" ~ 0.0378" x 6 steps
POWER
Main motor: 7.5 HP 3 Phase
Elevating motor: 2 HP
Clamping motor: 1 HP
Coolant pump motor: 1/8 HP
WEIGHT & DIMENSIONS
Machine height from floor: 124-7/8"
Shipping dimensions (LxWxH): 112" x 53" x 117"
Net weight: 11,220 lb.
Gross weight: 12,540 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Radial Drills





Accessories

STANDARD ACCESSORIES:

  • Plain box table
  • Work light
  • Coolant system

OPTIONAL ACCESSORIES:
  1. Tilt table 520 x 510 x 570 mm (20.47" x 20" x 22.44")
  2. Tilt table 810 x 710 x 610 mm (31.89" x 27.95" x 24")

Specifications

MACHINE
Model: 1763H
Type: Radial Drill
CAPACITY
Diameter of column: 17"
Max. distance column to spindle center: 63"
Min. distance column to spindle center: 13.38"
Travel of spindle head: 49.63"
Max. distance base surface to spindle end: 63"
Min. distance base surface to spindle end: 13"
Elevating height of arm: 35.44"
Effective area of box table: 27-5/8" x 19-5/8" x 15-3/4"
Dimensions of base: 97-5/8" x 41-11/32" x 8-1/4"
Drill capacity (steel): 2.25"
Drill capacity (cast iron): 2.625"
Tapping capacity (steel): 2"
Tapping capacity (cast iron): 2.375"
Boring capacity (steel): 5"
Boring capacity (cast iron): 7.375"
SPINDLE
Spindle taper: M.T. #5
Spindle travel: 14-9/16"
Spindle speeds (rpm x steps): 40 ~ 1,920 rpm x 12 steps
Spindle feeds (rev. x steps): 0.0028" ~ 0.0378" x 6 steps
POWER
Main motor: 7.5 HP 3 Phase
Elevating motor: 2 HP
Clamping motor: 1 HP
Coolant pump motor: 1/8 HP
WEIGHT & DIMENSIONS
Machine height from floor: 124-7/8"
Shipping dimensions (LxWxH): 112" x 53" x 117"
Net weight: 11,220 lb.
Gross weight: 12,540 lb.

* Design and specifications are subject to change without notice.
