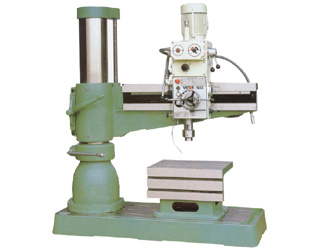

1043 Radial Drill


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

FEATURES:

  • Power elevating motor arm with an anti-fall safety device
  • Spindle is balanced by means of cylinder shap spring
  • Hardened and precision ground arm ways
  • High speed gears are made of Nickel-Chrome steel and through the heat treatment process and precision grinding
  • Manual clamping of column, arm, and head
  • Limit safety device for operation
  • Built-in work light
  • Built-in coolant system


STANDARD ACCESSORIES:

  • Plain box table
  • Work light
  • Coolant system
MACHINE
Model: 1043
Type: Radial Drill
CAPACITY
Diameter of column: 10.25"
Max. distance column to spindle center: 43.31"
Min. distance column to spindle center: 9.625"
Travel of spindle head: 33.625"
Max. distance base surface to spindle end: 50.375"
Min. distance base surface to spindle end: 12.625"
Elevating height of arm: 24"
Effective area of box table: 24-3/4" x 20-1/2" x 16-1/2"
Dimensions of base: 67-3/4" x 28" x 6-1/2"
Drill capacity (steel): 1.56"
Drill capacity (cast iron): 2.19"
Tapping capacity (steel): 0.75"
Tapping capacity (cast iron): 0.75"
Boring capacity (steel): 3.38"
Boring capacity (cast iron): 4.75"
SPINDLE
Spindle taper: M.T. #4
Spindle travel: 9"
Spindle speeds (rpm x steps): 44 ~ 1,500 rpm x 12 steps (44, 77, 88, 147, 154, 228, 282, 398, 456, 750, 796, 1500)
Spindle feeds (rev. x steps): 0.002", 0.0035", 0.0059" x 3 steps
POWER
Main motor: 3 HP 3 Phase (2-speed motor)
Elevating motor: 1 HP
Coolant pump motor: 1/8 HP
WEIGHT & DIMENSIONS
Machine height from floor: 100"
Shipping dimensions (LxWxH): 74" x 34" x 89"
Net weight: 3,960 lb.
Gross weight: 4,290 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Radial Drills





Accessories

STANDARD ACCESSORIES:

  • Plain box table
  • Work light
  • Coolant system

Specifications

MACHINE
Model: 1043
Type: Radial Drill
CAPACITY
Diameter of column: 10.25"
Max. distance column to spindle center: 43.31"
Min. distance column to spindle center: 9.625"
Travel of spindle head: 33.625"
Max. distance base surface to spindle end: 50.375"
Min. distance base surface to spindle end: 12.625"
Elevating height of arm: 24"
Effective area of box table: 24-3/4" x 20-1/2" x 16-1/2"
Dimensions of base: 67-3/4" x 28" x 6-1/2"
Drill capacity (steel): 1.56"
Drill capacity (cast iron): 2.19"
Tapping capacity (steel): 0.75"
Tapping capacity (cast iron): 0.75"
Boring capacity (steel): 3.38"
Boring capacity (cast iron): 4.75"
SPINDLE
Spindle taper: M.T. #4
Spindle travel: 9"
Spindle speeds (rpm x steps): 44 ~ 1,500 rpm x 12 steps (44, 77, 88, 147, 154, 228, 282, 398, 456, 750, 796, 1500)
Spindle feeds (rev. x steps): 0.002", 0.0035", 0.0059" x 3 steps
POWER
Main motor: 3 HP 3 Phase (2-speed motor)
Elevating motor: 1 HP
Coolant pump motor: 1/8 HP
WEIGHT & DIMENSIONS
Machine height from floor: 100"
Shipping dimensions (LxWxH): 74" x 34" x 89"
Net weight: 3,960 lb.
Gross weight: 4,290 lb.

* Design and specifications are subject to change without notice.
