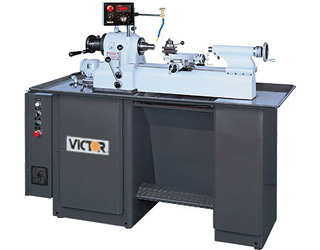

616EVS-CT (Compound & Tailstock)


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

FEATURES:

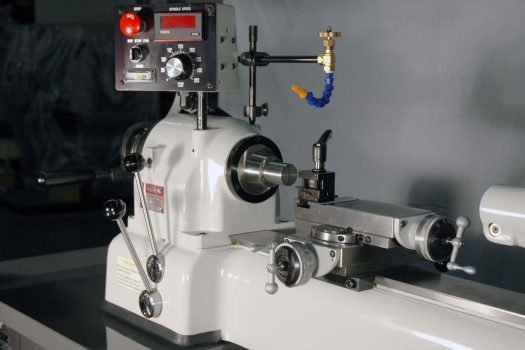

  • Easy to read digital display on actual spindle rpm
  • Designed to machine precision small diameter parts
  • High performance machining capability of shaft, chucking, or collet held work piece
  • Fully enclosed preloaded angular contact ball bearing headstock with splash shield for spindle
  • Hardened and ground alloy tool steel bedways.
  • Hardened and ground spindle mounted on high precision preloaded angular contact ball bearings

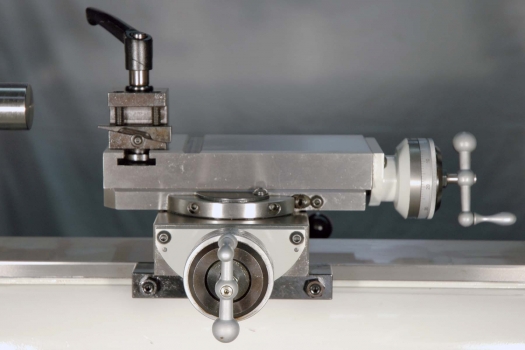

  • Hardened and ground compound slide

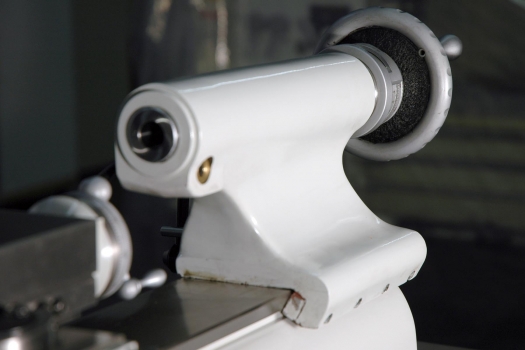

  • Tailstock with graduated quill

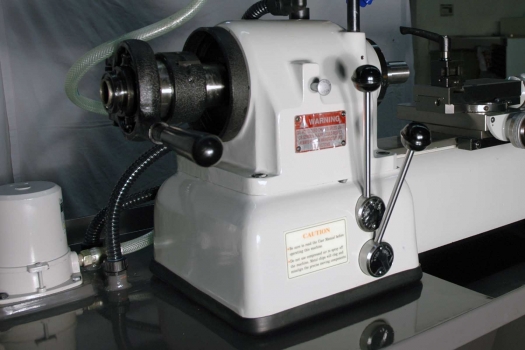

  • 5C lever type collet closer standard
  • 3 HP frequency controlled motor
  • Yaskawa Inverter Drive


STANDARD ACCESSORIES:

  • Variable frequency drive
  • 5C lever type collet closer
  • Compound slide
  • Tailstock
  • Test bar
  • Coolant system
  • Leveling screws and pads
  • Manual and parts list


OPTIONAL ACCESSORIES:

 Releasing tap holder

 Adjustable rotary stop

Drill chuck arbor

 Drill chuck



 Knee tool

 Tool holder extension

 5C collet fixture plate

 5C collet set

 Vertical cut-off slide without cut-off blade

 Straight and taper turning slide for double tool cross slide

 6" zero-set 3-jaw scroll chuck with 4º taper back plate

 6" 4-jaw independent chuck with 4º taper back plate

 Chip and coolant shield

Step chuck and closer

 Slide tool

 Quick action recessing tool

 Double tool cross slide

 Adjustable holder

 Radius turning attachment

 Center and facing tool



 Tool setting gage

 Universal collet stop

 Quick change adjustable tool holder

 Knurling holder

 End-working slide

 Releasing die nut holder

 Threaded positive stops

Fixture plate


OPTIONAL ACCESSORIES SETUP:




MACHINE
Model: 616EVS-CT
Type: Electronic Variable Speed Second Operation Lathe
SPINDLE CAPACITY
With jaw chucks: 6"
With expanding collets: 3"
With round 5C collets: 1-1/16"
With hexagon 5C collets: 7/8"
With square 5C collets: 3/4"
With step chucks: 1-1/16" to 6"
Spindle nose diameter: 2.189"
Spindle nose I.D. / O.D.: 5C / 4º taper
Variable spindle speeds: 0 ~ 4,000 rpm (5C collet)
CAPACITY
Swing over bed: 9"
TRAVELS
Compound slide X-axis travel: 4-1/2"
Compound slide Z-axis travel: 5-1/2"
TAILSTOCK
Tailstock spindle taper: M.T. #2
Tailstock spindle travel: 3-3/4"
POWER
Inverter spindle motor: 3 HP, 220V 3PH
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Machine dimensions (LxWxH): 73"x35"x75"
Gross weight: 1,364 lb.



Click to download brochure in PDF
