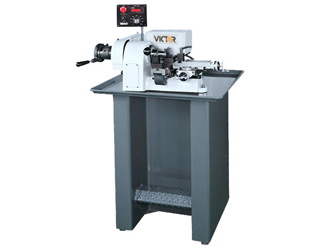

CP-27EVS Variable Speed Finishing Lathe


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

FEATURES:

  • Easy to read digital display on actual spindle rpm
  • Welded steel pedestal
  • High accuracy spindle
  • Hardened and ground
  • Precision steel bedways
  • Compact design
  • Fast setup
  • Easy operation
  • Fast lever collet chucking
  • Wide chip pan
  • Foot rest
  • 5C lever type collet closer standard
  • 1 HP frequency controlled motor


STANDARD ACCESSORIES:

  • Variable frequency drive
  • 5C lever type collet closer
  • Double tool cross slide
  • Welded steel pedestal
  • Manual and parts list


OPTIONAL ACCESSORIES:

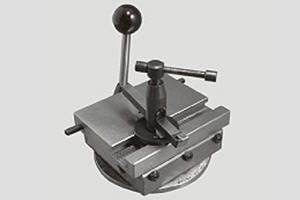

 Compound slide

5C collet fixture plate

 Vertical cut-off slide without cut-off blade


Step chuck and closer



 5C collet set

 Fixture plate

  Expanding collet and pads

Straight and taper turning slide for double tool cross slide


 Thread positive stops

Tool holder collet (collet type)

 Releasing tap holder (collet type)


MACHINE
Model: CP-27EVS
Type: Electronic Variable Speed Finishing Lathe
SPINDLE CAPACITY
With jaw chucks: 6"
With expanding collets: 3"
With round 5C collets: 1-1/16"
With hexagon 5C collets: 7/8"
With square 5C collets: 3/4"
With step chucks: 1-1/16" to 6"
Spindle nose diameter: 2-3/16"
Spindle nose I.D. / O.D.: 5C / 4º taper
Variable spindle speeds: 0 ~ 4,000 rpm (5C collet)
CAPACITY
Swing over bed: 9"
POWER
Inverter spindle motor: 1 HP 220V 3PH
Coolant pump: Optional
WEIGHT & DIMENSIONS
Machine dimensions (LxWxH): 36"x36"x55"
Gross weight: 820 lb.



Click to download brochure in PDF
