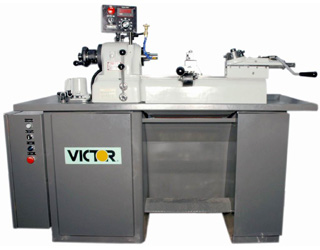

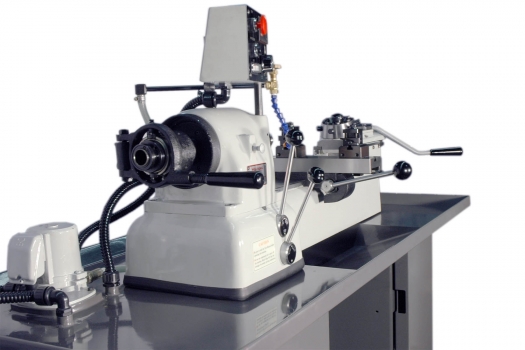

616EVS (Double cross slide & Turret)


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

FEATURES:

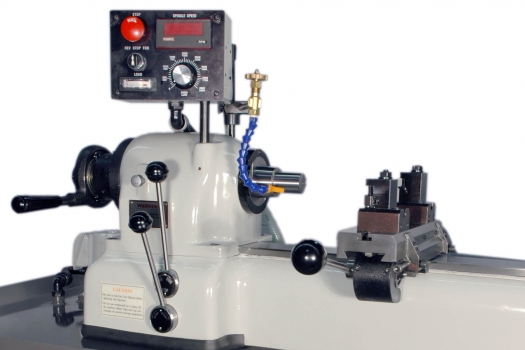

  • Easy to read digital display on actual spindle rpm

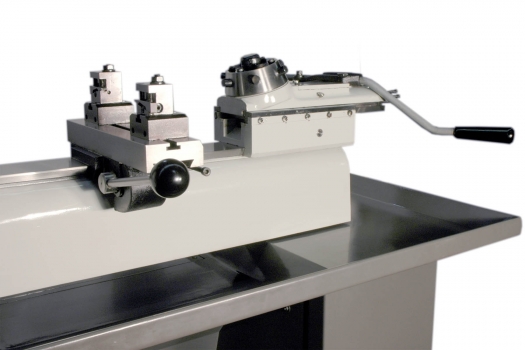

  • High precision preloaded ball bearing 6-station turret with indexing lever
  • Fully enclosed preloaded angular contact ball bearing headstock with splash shield for spindle
  • Fast lever collet chucking with a single movement
  • Hardened and ground alloy tool steel bedways.
  • Hardened and ground spindle mounted on high precision preloaded angular contact ball bearings

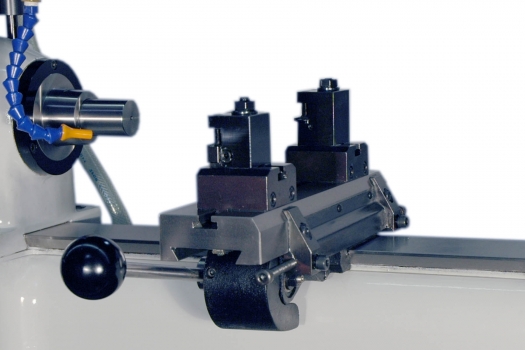

  • Double cross slide is held securely to the bed by a mating dovetail section and can be locked in any position on the bed.
  • 5C lever type collet closer standard
  • 3 HP frequency controlled motor
  • Yaskawa Inverter Drive


STANDARD ACCESSORIES:

  • Variable frequency drive
  • 5C lever type collet closer
  • Double tool cross slide
  • 6-station turret with indexing lever
  • Test bar
  • Coolant system
  • Leveling screws and pads
  • Manual and parts list

OPTIONAL ACCESSORIES:

 Releasing tap holder

Adjustable rotary stop

Drill chuck arbor

Drill chuck



Knee tool

Tool holder extension

 5C collet fixture plate

 5C collet set



 Vertical cut-off slide without cut-off blade

 Straight and taper turning slide for double tool cross slide


6" zero-set 3-jaw scroll chuck with 4º taper back plate

6" 4-jaw independent chuck with 4º taper back plate

 Chip and coolant shield

Step chuck and closer

Compound slide

Threaded positive stops

 Slide tool

 Quick action recessing tool

Fixture plate

 Adjustable holder

 Radius turning attachment

 Centering and facing tool

 Tool setting gage

 Universal collet stop

 Quick change adjustable holder

 Knurling holder

 End-working slide

 Releasing die nut holder


OPTIONAL ACCESSORIES SETUP:




MACHINE
Model: 616EVS
Type: Electronic Variable Speed Second Operation Lathe
SPINDLE CAPACITY
With jaw chucks: 6"
With expanding collets: 3"
With round 5C collets: 1-1/16"
With hexagon 5C collets: 7/8"
With square 5C collets: 3/4"
With step chucks: 1-1/16" to 6"
Spindle nose diameter: 2.189"
Spindle nose I.D. / O.D.: 5C / 4º taper
Variable spindle speeds: 0 ~ 4,000 rpm (5C collet)
CAPACITY
Swing over bed: 9"
I.D. of turret head: 5/8"
TRAVELS
Double tool cross slide travel: 3-3/4"
Turret slide travel: 4"
POWER
Inverter spindle motor: 3 HP 220V 3PH
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Machine dimensions (LxWxH): 69"x28"x63"
Gross weight: 1,364 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Toolroom Lathes





Accessories

STANDARD ACCESSORIES:

  • Variable frequency drive
  • 5C lever type collet closer
  • Double tool cross slide
  • 6-station turret with indexing lever
  • Test bar
  • Coolant system
  • Leveling screws and pads
  • Manual and parts list

OPTIONAL ACCESSORIES:

 Releasing tap holder

Adjustable rotary stop

Drill chuck arbor

Drill chuck



Knee tool

Tool holder extension

 5C collet fixture plate

 5C collet set



 Vertical cut-off slide without cut-off blade

 Straight and taper turning slide for double tool cross slide


6" zero-set 3-jaw scroll chuck with 4º taper back plate

6" 4-jaw independent chuck with 4º taper back plate

 Chip and coolant shield

Step chuck and closer

Compound slide

Threaded positive stops

 Slide tool

 Quick action recessing tool

Fixture plate

 Adjustable holder

 Radius turning attachment

 Centering and facing tool

 Tool setting gage

 Universal collet stop

 Quick change adjustable holder

 Knurling holder

 End-working slide

 Releasing die nut holder


OPTIONAL ACCESSORIES SETUP:




Specifications

MACHINE
Model: 616EVS
Type: Electronic Variable Speed Second Operation Lathe
SPINDLE CAPACITY
With jaw chucks: 6"
With expanding collets: 3"
With round 5C collets: 1-1/16"
With hexagon 5C collets: 7/8"
With square 5C collets: 3/4"
With step chucks: 1-1/16" to 6"
Spindle nose diameter: 2.189"
Spindle nose I.D. / O.D.: 5C / 4º taper
Variable spindle speeds: 0 ~ 4,000 rpm (5C collet)
CAPACITY
Swing over bed: 9"
I.D. of turret head: 5/8"
TRAVELS
Double tool cross slide travel: 3-3/4"
Turret slide travel: 4"
POWER
Inverter spindle motor: 3 HP 220V 3PH
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Machine dimensions (LxWxH): 69"x28"x63"
Gross weight: 1,364 lb.

* Design and specifications are subject to change without notice.
