3090DCM

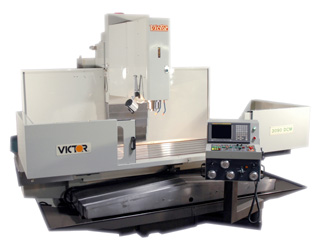

Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

A highly reliability 3-axis Vertical Machining Center with advanced digital servo technology, user friendly operation and simple operation programming support tool.

FEATURES:

  • Fanuc Oi-MD CNC controller
  • Main machine body is made from rugged Meehanite casting for excellent vibration damping and heavy workloads
  • Heavy duty box way construction
  • Double wall working table and rigid saddle structure provide unsurpassed rigidity
  • Both side of the saddle are coated with TURCITE B for smooth traversing, reducing friction and wear resistance
  • The saddle, slideway and table are hardened and precision ground to ensure long life
  • Automatic lubrication system for all ballscrews and sliding ways to keep high precision of the machine - X and Y axes with 20 lube points and Z-axis with 13 lube points
  • X and Y axes slideway and ballscrew are protected by telescopic steel shield to keep chips out
  • Z-axis ballscrew is covered by conical spring cover to protect against chips and dust
  • High accuracy C-5 grade ballscrews on X, Y and Z axes to ensure backlash-free transmission
  • High rigidity one-piece CNC spindle head
  • Precision P4 spindle bearing
  • Counter balanced spindle head
  • Built-in coolant system
  • Optional 24 tools carousel type or arm type automatic tool changer (ATC)


STANDARD ACCESSORIES:

  • Servo spindle motor
  • One remote pendant handwheel
  • Table chip guard with dual sliding doors
  • Bottom coolant and chip tray
  • Dual rear splash shields
  • Telescopic steel way covers on X and Y axes
  • Conical spring cover on Z-axis ballscrew
  • Air power drawbar
  • Halogen work light
  • Built-in auto lubrication system
  • Built-in flood coolant system
MACHINE
Model: 3090DCM
Type: Digital Control Mill
CNC controller: Fanuc Oi-MD
Number of electronic handwheels: One remove pendant handwheel
TRAVELS
X-axis travel: 78.75"
Y-axis travel: 35"
Z-axis travel: 28"
Spindle nose to table surface: 3" ~ 32"
Spindle center to column distance: 35"
TABLE
Table size: 92" x 30"
T-slot width: 0.71"
Number of T-slots: 5
Max. weight: 3,960 lb.
SPINDLE
Max. speed: 8,000 rpm
Spindle taper: CAT 40 (CAT 50 optional)
Drive system: Direct drive
Spindle motor: 15 HP
FEEDRATE
X-axis rapid traverse: 400 ipm
Y-axis rapid traverse: 400 ipm
Z-axis rapid traverse: 300 ipm
AUTOMATIC TOOL CHANGER (ATC)
ATC Type: Carousel (optional) Arm type (optional)
Capacity: 24
SERVO MOTOR SYSTEM
Servo motor: Fanuc A/C brushless servo motor
Amplifier system: Fanuc digital servo amplifier drives
X-axis servo motor torque: 188.5 in-lb.
Y-axis servo motor torque: 188.5 in-lb.
Z-axis servo motor torque: 188.5 in-lb.
ACCURACY
Positioning: 0.0004"
Repeatability: 0.0002"
POWER
Electrical: 220V / 3 Phase
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 195" x 145" x 117"
Net weight: 16,940 lb.
Gross weight: 17,380 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



CNC Bed Mills & Machining Centers





Accessories

STANDARD ACCESSORIES:

  • Servo spindle motor
  • One remote pendant handwheel
  • Table chip guard with dual sliding doors
  • Bottom coolant and chip tray
  • Dual rear splash shields
  • Telescopic steel way covers on X and Y axes
  • Conical spring cover on Z-axis ballscrew
  • Air power drawbar
  • Halogen work light
  • Built-in auto lubrication system
  • Built-in flood coolant system

Specifications

MACHINE
Model: 3090DCM
Type: Digital Control Mill
CNC controller: Fanuc Oi-MD
Number of electronic handwheels: One remove pendant handwheel
TRAVELS
X-axis travel: 78.75"
Y-axis travel: 35"
Z-axis travel: 28"
Spindle nose to table surface: 3" ~ 32"
Spindle center to column distance: 35"
TABLE
Table size: 92" x 30"
T-slot width: 0.71"
Number of T-slots: 5
Max. weight: 3,960 lb.
SPINDLE
Max. speed: 8,000 rpm
Spindle taper: CAT 40 (CAT 50 optional)
Drive system: Direct drive
Spindle motor: 15 HP
FEEDRATE
X-axis rapid traverse: 400 ipm
Y-axis rapid traverse: 400 ipm
Z-axis rapid traverse: 300 ipm
AUTOMATIC TOOL CHANGER (ATC)
ATC Type: Carousel (optional) Arm type (optional)
Capacity: 24
SERVO MOTOR SYSTEM
Servo motor: Fanuc A/C brushless servo motor
Amplifier system: Fanuc digital servo amplifier drives
X-axis servo motor torque: 188.5 in-lb.
Y-axis servo motor torque: 188.5 in-lb.
Z-axis servo motor torque: 188.5 in-lb.
ACCURACY
Positioning: 0.0004"
Repeatability: 0.0002"
POWER
Electrical: 220V / 3 Phase
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 195" x 145" x 117"
Net weight: 16,940 lb.
Gross weight: 17,380 lb.

* Design and specifications are subject to change without notice.
