618EVS Toolroom Lathe


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

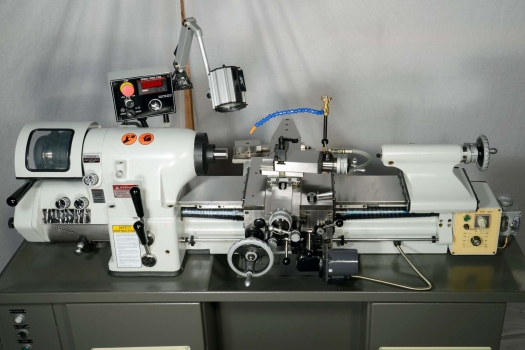

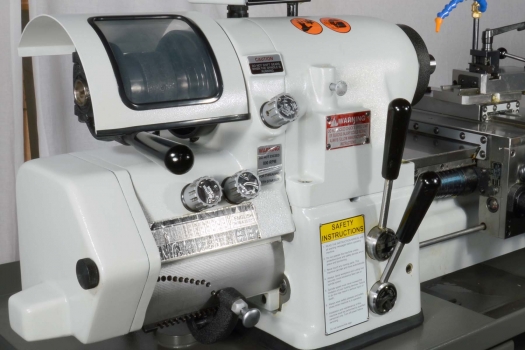

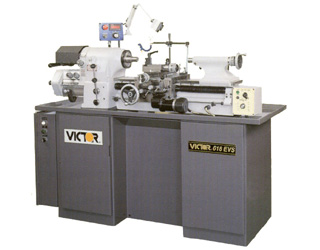

High precision toolroom lathe equipped with a smooth 3 HP frequency controlled motor that runs virtually vibration free and extremely quite. With fewer mechanical parts and exceptional built quality, Victor 618EVS toolroom lathe is easy to maintain, yet provides superior accuracy and performance.

FEATURES:

  • Easy to read digital display on actual spindle rpm
  • Infinitely electronic variable spindle speeds from 0 ~ 4,000 rpm
  • Spindle runout within 50 millionths
  • Dual range inch/metric quick change gearbox
  • Electric variable feed control on carriage and cross slide
  • Hardened and ground spindle mounted on high precision preloaded angular contact ball bearings
  • Hardened and ground alloy tool steel bedways
  • Turcite-B slideway bearing surface between carriage and bed
  • Automatic thread length control with fine adjustable stops to provide accurate threading
  • Quick-action tool post slide for threading
  • 5C lever type collet closer standard
  • 3 HP frequency controlled motor
  • Yaskawa Inverter Drive


CNC Model
1118DCL Toolroom Lathe


STANDARD ACCESSORIES:

  • Variable frequency drive
  • 5C lever type collet closer
  • Tool holder
  • Drive plate
  • Drive gear
  • Drive dog
  • Test bar
  • Headstock center
  • Tailstock
  • Coolant system
  • Leveling screws and pads
  • Manual and parts list

OPTIONAL SPECIAL PACKAGE INCLUDES:

  1. 6" zero-set 3-jaw chuck with 4º taper back plate
  2. Halogen work light
  3. Chip and coolant shield (High impact resistance Lexan polycarbonate resin)


OPTIONAL ACCESSORIES:


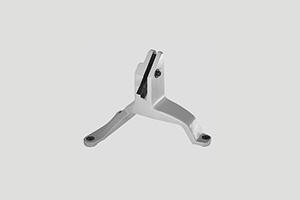

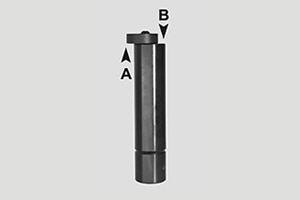

Tool setting gage

5C collet fixture plate

Chip and coolant shield

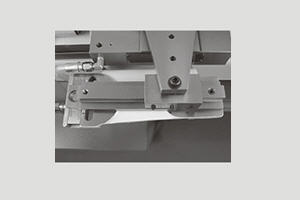

Vertical cut-off slide



 Steady rest


Follow rest


Face plate


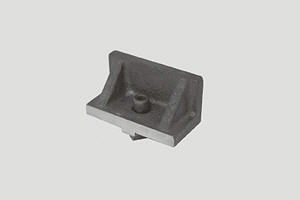

Angle plate


Taper attachment

 Radius turning attachment

 6" zero-set 3-jaw scroll chuck with 4º taper back plate

 6" 4-jaw independent chuck with 4º taper back plate

 Micro carriage stop with indicator

 4-position indexable tool post

 Rear tool holder slide assembly

 Step chuck and closer

 Threaded positive stops

 Universal collet stop

5C collet set

 Fixture plate

 5C headstock center

Drive plate

 Drive dog

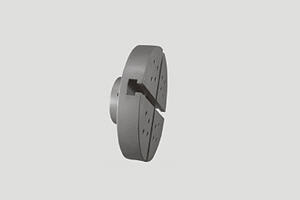

 Expanding collet and pads

Knurling holder

 Turning & facing holder

 Drilling & boring bar holder

 6-station turret

 Bed length indicator

Live center

 Quick change tool post

Digital readout


OPTIONAL ACCESSORIES SETUP:





MACHINE
Model: 618EVS
Type: Electronic Variable Speed Toolroom Lathe
SPINDLE CAPACITY
With jaw chucks: 6"
With expanding collets: 3"
With round 5C collets: 1-1/16"
With hexagon 5C collets: 7/8"
With square 5C collets: 3/4"
With step chucks: 1-1/16" to 6"
Spindle nose diameter: 2.189"
Spindle nose I.D. / O.D.: 5C / 4º taper
Hole through spindle: 1-1/4"
Variable spindle speeds: 0 ~ 4,000 rpm (5C Collet) 0 ~ 3,000 rpm (6" 3-Jaw Chuck)
CAPACITY
Swing over carriage: 9"
Distance between center: 18"
Swing over cross slide: 6"
Swing over bed: 11"
THREADS, FEEDS & TRAVELS
Lead screw diameter: 1" - 8 TPI
Carriage power feed range: 5/16" ~ 7"
Cross slide power feed range: 3/16" ~ 4"
Cross slide travel: 6"
Quick-action compound slide travel: 0.1"
Compound slide travel: 3"
Inch threads: 11 ~ 108 TPI (36 thread changes)
Metric threads: 0.275 ~ 2.7 mm (36 thread changes)
TAILSTOCK
Tailstock spindle diameter: 1.358"
Tailstock spindle taper: M.T. #2
Tailstock spindle travel: 3-3/4"
POWER
Inverter spindle motor: 3 HP 220V 3PH
Coolant pump: 1/8 HP
D.C. feed motor: 110V, 70W
WEIGHT & DIMENSIONS
Machine dimensions (LxWxH): 73"x30"x67"
Gross weight: 2,530 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Toolroom Lathes





Accessories

STANDARD ACCESSORIES:

  • Variable frequency drive
  • 5C lever type collet closer
  • Tool holder
  • Drive plate
  • Drive gear
  • Drive dog
  • Test bar
  • Headstock center
  • Tailstock
  • Coolant system
  • Leveling screws and pads
  • Manual and parts list

OPTIONAL SPECIAL PACKAGE INCLUDES:

  1. 6" zero-set 3-jaw chuck with 4º taper back plate
  2. Halogen work light
  3. Chip and coolant shield (High impact resistance Lexan polycarbonate resin)


OPTIONAL ACCESSORIES:


Tool setting gage

5C collet fixture plate

Chip and coolant shield

Vertical cut-off slide



 Steady rest


Follow rest


Face plate


Angle plate


Taper attachment

 Radius turning attachment

 6" zero-set 3-jaw scroll chuck with 4º taper back plate

 6" 4-jaw independent chuck with 4º taper back plate

 Micro carriage stop with indicator

 4-position indexable tool post

 Rear tool holder slide assembly

 Step chuck and closer

 Threaded positive stops

 Universal collet stop

5C collet set

 Fixture plate

 5C headstock center

Drive plate

 Drive dog

 Expanding collet and pads

Knurling holder

 Turning & facing holder

 Drilling & boring bar holder

 6-station turret

 Bed length indicator

Live center

 Quick change tool post

Digital readout


OPTIONAL ACCESSORIES SETUP:





Specifications

MACHINE
Model: 618EVS
Type: Electronic Variable Speed Toolroom Lathe
SPINDLE CAPACITY
With jaw chucks: 6"
With expanding collets: 3"
With round 5C collets: 1-1/16"
With hexagon 5C collets: 7/8"
With square 5C collets: 3/4"
With step chucks: 1-1/16" to 6"
Spindle nose diameter: 2.189"
Spindle nose I.D. / O.D.: 5C / 4º taper
Hole through spindle: 1-1/4"
Variable spindle speeds: 0 ~ 4,000 rpm (5C Collet) 0 ~ 3,000 rpm (6" 3-Jaw Chuck)
CAPACITY
Swing over carriage: 9"
Distance between center: 18"
Swing over cross slide: 6"
Swing over bed: 11"
THREADS, FEEDS & TRAVELS
Lead screw diameter: 1" - 8 TPI
Carriage power feed range: 5/16" ~ 7"
Cross slide power feed range: 3/16" ~ 4"
Cross slide travel: 6"
Quick-action compound slide travel: 0.1"
Compound slide travel: 3"
Inch threads: 11 ~ 108 TPI (36 thread changes)
Metric threads: 0.275 ~ 2.7 mm (36 thread changes)
TAILSTOCK
Tailstock spindle diameter: 1.358"
Tailstock spindle taper: M.T. #2
Tailstock spindle travel: 3-3/4"
POWER
Inverter spindle motor: 3 HP 220V 3PH
Coolant pump: 1/8 HP
D.C. feed motor: 110V, 70W
WEIGHT & DIMENSIONS
Machine dimensions (LxWxH): 73"x30"x67"
Gross weight: 2,530 lb.

* Design and specifications are subject to change without notice.
