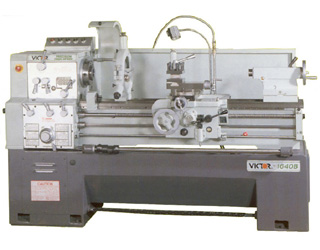

1630B / 1640B / 1660B Lathe


Machine may be shown with optional accessories


Rollover to enlarge or click to view large image

Machine may be shown with optional accessories.

Heavy-duty lathe with rigid one-piece cast iron base provides the best value in the industry with outstanding price/performance ratio. It equips with 7-1/2 HP main motor to handle demanding continuous industrial usage.

FEATURES:

  • One shot lube system for apron and slide way
  • Spindle is supported at 3 points by precision bearings
  • Hardened and ground bed ways
  • Hardened and precision ground gears in headstock
  • 2-1/32" spindle bore with D1-6 Camlock spindle nose
  • 7.5 HP main motor
  • Inch/Metric dual dial
  • Full length foot brake
  • Spindle speed range 33 ~ 2,000 rpm
  • Rigid one piece cast iron base


STANDARD ACCESSORIES:

  • Removable gap
  • Tailstock
  • Coolant system
  • Chuck cover with limit switch
  • Full length foot brake
  • Change gears
  • Threading dial indicator
  • Center sleeve
  • Dead center
  • Leveling screws and pads
  • Manual and parts list

MACHINE INCLUDES:
  1. 8" 3-jaw chuck
  2. 10" 4-jaw chuck
  3. Steady rest
  4. Follow rest
  5. 4-way tool post
  6. Full length splash guard
  7. Halogen work light
  8. Chuck cover with limit switch
MACHINE
Model(s): 1630B 1640B 1660B
Type: Precision High Speed Lathe
CAPACITY
Swing over bed: 16"
Swing over cross slide: 9.84"
Swing over gap: 23"
Bed width: 11"
Distance between centers: 30" 40" 60"
HEADSTOCK
Spindle bore diameter: 2.03"
Spindle bore taper: M.T. #6
Taper of center in sleeve: M.T. #4
Spindle nose: D1-6
Number of spindle speeds: 16 Steps
Range of spindle speeds (rpm): 33 ~ 2,000 rpm
Speed selections: 33, 55, 95, 150, 65, 110, 190, 225, 300, 375, 450, 650, 750, 1000, 1300, 2000
THREADS & FEEDS
Range of longitudinal feeds: 0.0033" ~ 0.0455"/rev.
Range of cross feeds: 0.0028" ~ 0.0387"/rev.
Inch threads: 4 ~ 56 TPI x 36 kinds
Metric threads: 0.5 ~ 7 mm x 22 kinds
CARRIAGE
Cross slide travel: 8-5/8"
Compound slide travel: 4-1/2"
TAILSTOCK
Tailstock taper center: M.T. #4
Tailstock quill travel: 4-11/16"
POWER
Main motor: 7.5 HP 3 Phase
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 79"x45"x62" 86"x45"x62" 108"x45"x62"
Gross weight: 3,300 lb. 3,600 lb. 4,110 lb.



Click to download brochure in PDF





Please fill out the form below to submit your request and we will get back to you as soon as we can.



Engine Lathes





Accessories

STANDARD ACCESSORIES:

  • Removable gap
  • Tailstock
  • Coolant system
  • Chuck cover with limit switch
  • Full length foot brake
  • Change gears
  • Threading dial indicator
  • Center sleeve
  • Dead center
  • Leveling screws and pads
  • Manual and parts list

MACHINE INCLUDES:
  1. 8" 3-jaw chuck
  2. 10" 4-jaw chuck
  3. Steady rest
  4. Follow rest
  5. 4-way tool post
  6. Full length splash guard
  7. Halogen work light
  8. Chuck cover with limit switch

Specifications

MACHINE
Model(s): 1630B 1640B 1660B
Type: Precision High Speed Lathe
CAPACITY
Swing over bed: 16"
Swing over cross slide: 9.84"
Swing over gap: 23"
Bed width: 11"
Distance between centers: 30" 40" 60"
HEADSTOCK
Spindle bore diameter: 2.03"
Spindle bore taper: M.T. #6
Taper of center in sleeve: M.T. #4
Spindle nose: D1-6
Number of spindle speeds: 16 Steps
Range of spindle speeds (rpm): 33 ~ 2,000 rpm
Speed selections: 33, 55, 95, 150, 65, 110, 190, 225, 300, 375, 450, 650, 750, 1000, 1300, 2000
THREADS & FEEDS
Range of longitudinal feeds: 0.0033" ~ 0.0455"/rev.
Range of cross feeds: 0.0028" ~ 0.0387"/rev.
Inch threads: 4 ~ 56 TPI x 36 kinds
Metric threads: 0.5 ~ 7 mm x 22 kinds
CARRIAGE
Cross slide travel: 8-5/8"
Compound slide travel: 4-1/2"
TAILSTOCK
Tailstock taper center: M.T. #4
Tailstock quill travel: 4-11/16"
POWER
Main motor: 7.5 HP 3 Phase
Coolant pump: 1/8 HP
WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH): 79"x45"x62" 86"x45"x62" 108"x45"x62"
Gross weight: 3,300 lb. 3,600 lb. 4,110 lb.

* Design and specifications are subject to change without notice.
